The BarnMini series
The BarnMinis are ideal for standalone solutions and solve everything from a simple task to more comprehensive solutions. BarnMinis can be used in conjunction with other Barnfind products to empower complete distributed systems in larger facilities.

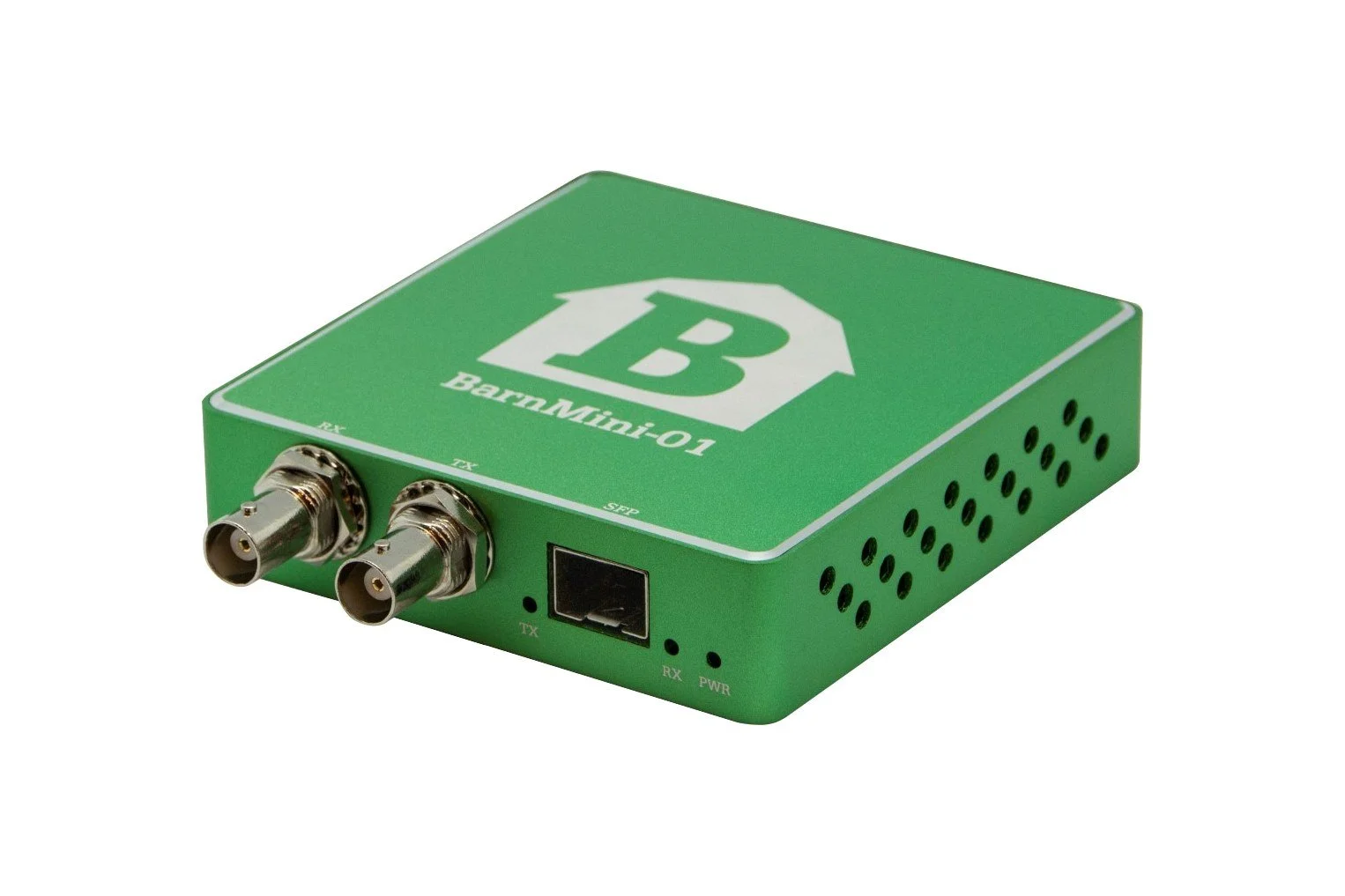

BarnMini - 01
The BarnMini series are made of robust materials in an elegant design. With a transparent connection between the in/out BNC connectors and the SFP, BarnMini-01 converts signals in both directions. Depending on the SFP being used, it converts signals to/from SDI – optical, Analog Video – SDI, HDMI – SDI.
All BarnMini modules can be used as a standalone box or in a more sophisticated system with BarnOne or BarnColor.
BarnMini-01 is not a stocked item and is only available by special requests. Please use the successor BarnMini-11 which is capable of up to 12G-SDI signals.
BNC to SFP converter
Technical Specifications
-
• 1x TX BNC port
• 1x RX BNC port
• 75 OHM BNC connector
• SMPTE 259M, 292M, 372M, 424M, DVB-ASI
• Multirate reclocking of outputs 270Mbps – 3Gbps
• Automatic cable EQ (Belden 1694A) 270Mbps-250m, 1.5Gbps-140m, 3Gbps-80m -
• 1x SFP port (small formfactor pluggable) for transceivers, MSA compliant, up to 3Gbps
• SMPTE 259M, 292M, 372M, 424M, 297M, DVB-ASI
• Multirate reclocking of outputs 270Mbps – 3Gbps
• SFP modules are hot pluggable/swappable
• Single-mode, multi-mode or media-converter SFP modules -
• 12-24V DC, power supply included
-
• 92mm x 98mm x 22mm
• 200g -
• BarnMini-01
