BarnMini - 11 (12G)
BNC to SFP converter
The BarnMini series are made of robust materials in an elegant design. This is the most popular BarnMini. BarnMini-11 is the heir of BarnMini-01, increasing the maximum bandwidth up to 12G-SDI used by 4K video.

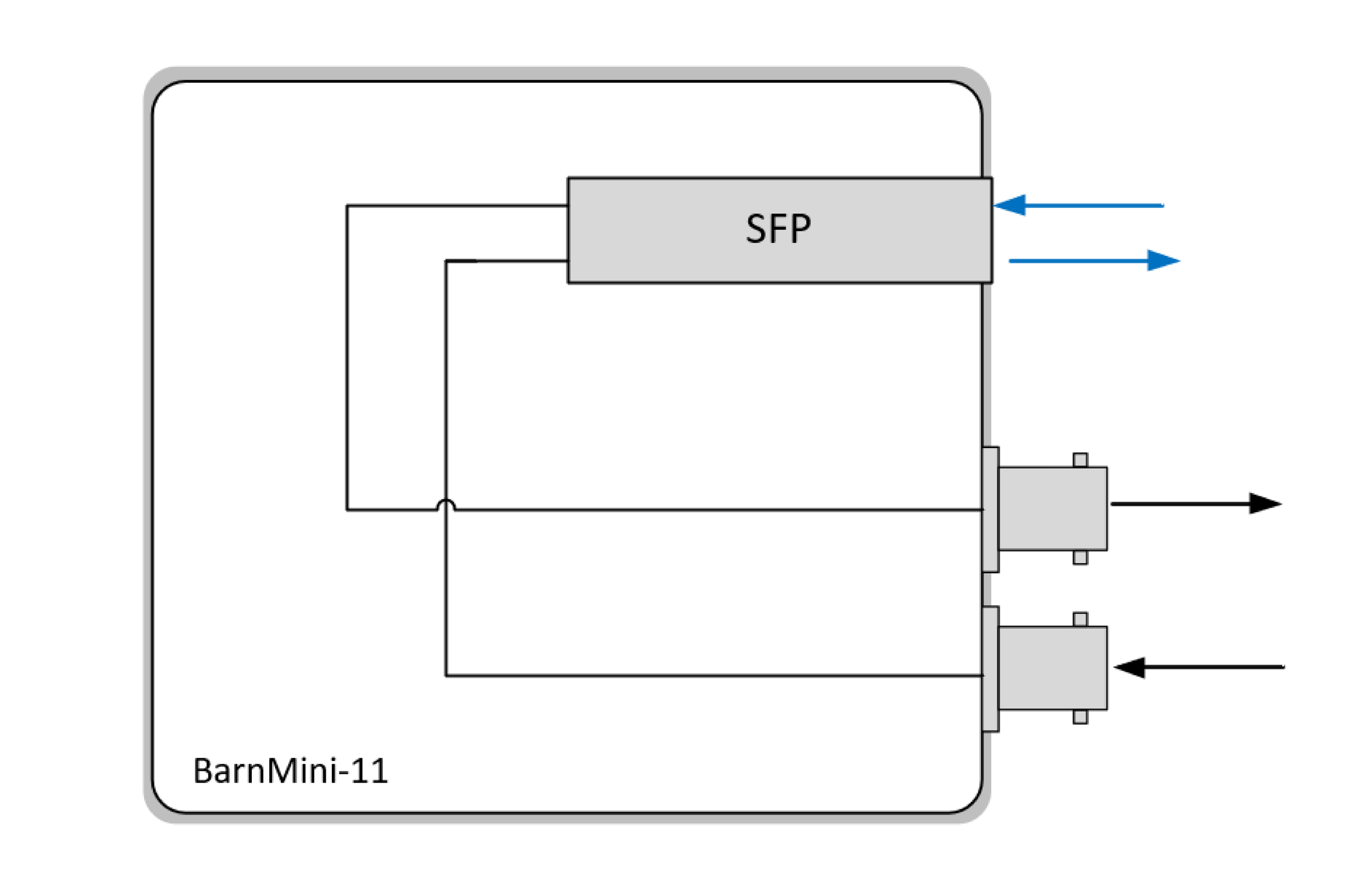

BarnMini-11 converts signals in both directions. Depending on the SFP being used, it converts signals to/from SDI – optical, Analog Video – SDI, HDMI – SDI.
BarnMini-11 can also be used for converting and transporting MADI signals.
All BarnMini modules can be used as a standalone box or in a more sophisticated system with BarnOne or BarnColor.
Technical Specifications
-
• 1x TX BNC port
• 1x RX BNC port
• 75 OHM BNC connector
• SMPTE 258M, 292M, 372M, 424M, DVB-ASI, SMPTE ST-2081, ST-2082, MADI
• Multirate reclocking of outputs 270Mbps – 12Gbps -
• 1x SFP+ port (small formfactor pluggable) for transceivers, MSA compliant, up to 12Gbps
• SMPTE 259M, 292M, 372M 424M, 297M, DVB-ASI, SMPTE ST-2081, ST-2082, MADI
• Multirate reclocking of outputs 270Mbps – 12Gbps
• SFP modules are hot pluggable/swappable
• Single-mode, multi-mode or media-converter SFP modules -
• 12-24V DC, power supply included
-
• 92mm x 98mm x 22mm
• 200g -
• BarnMini-11
