FIBER - QC FLEX
The All-in-One Fiber Optic Testing Suite

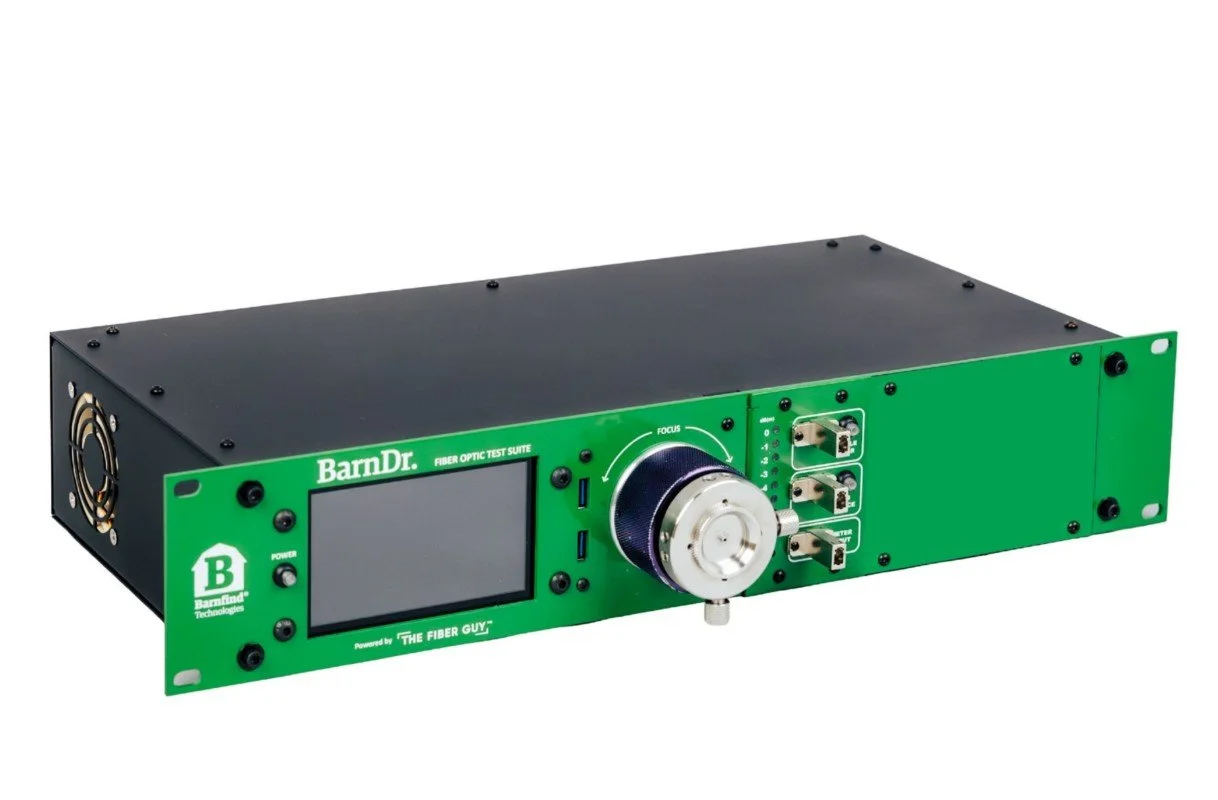

An essential piece of equipment for comprehensive fiber optic testing, the BarnDr. / FIBER - QC FLEX is a 2RU rack-mountable unit.
It features a microscope with a 4.3-inch LCD, a 2 mW visual fault locator (VFL), and optical power measurement capabilities.
The BarnDr. / FIBER - QC FLEX
BarnDr. / FIBER - QC FLEX combines every essential tool for live event fiber testing into a single 2RU rack unit. Technicians plug their fiber cables directly into the appropriate port — for inspection (microscope), tracing (VFL), or measurement (optical power meter) — getting everything they need instantly.
This accessibility drastically cuts down on troubleshooting time and, more importantly, reinforces best practices by making it easy to inspect and clean fiber before connecting. By preventing infrastructure contamination, the BarnDr. /FIBER - QC FLEX delivers substantial maintenance cost savings over the long run.

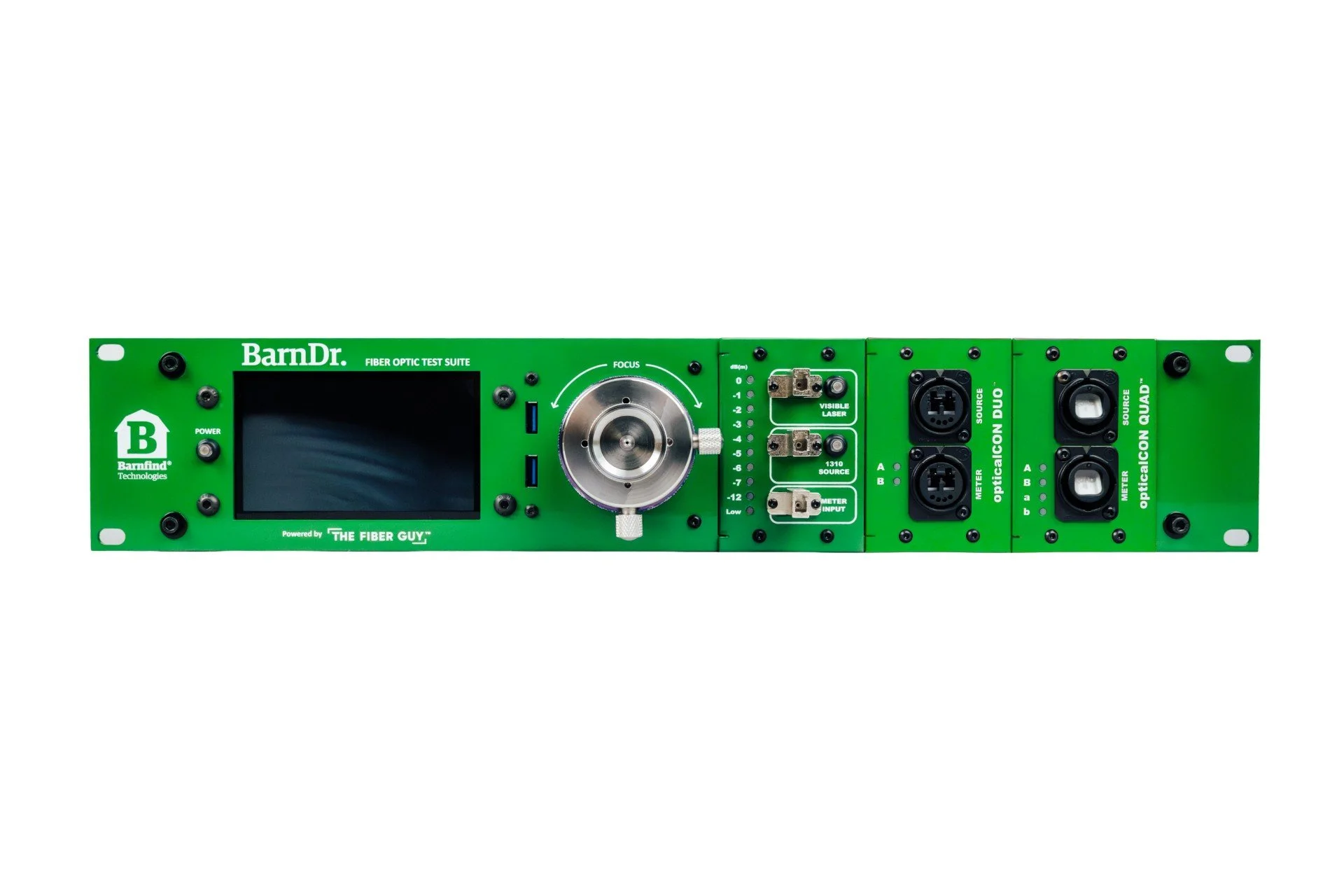

2RU base unit fiber optical testing suite includes:

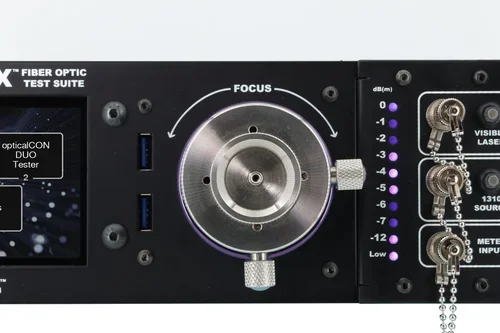

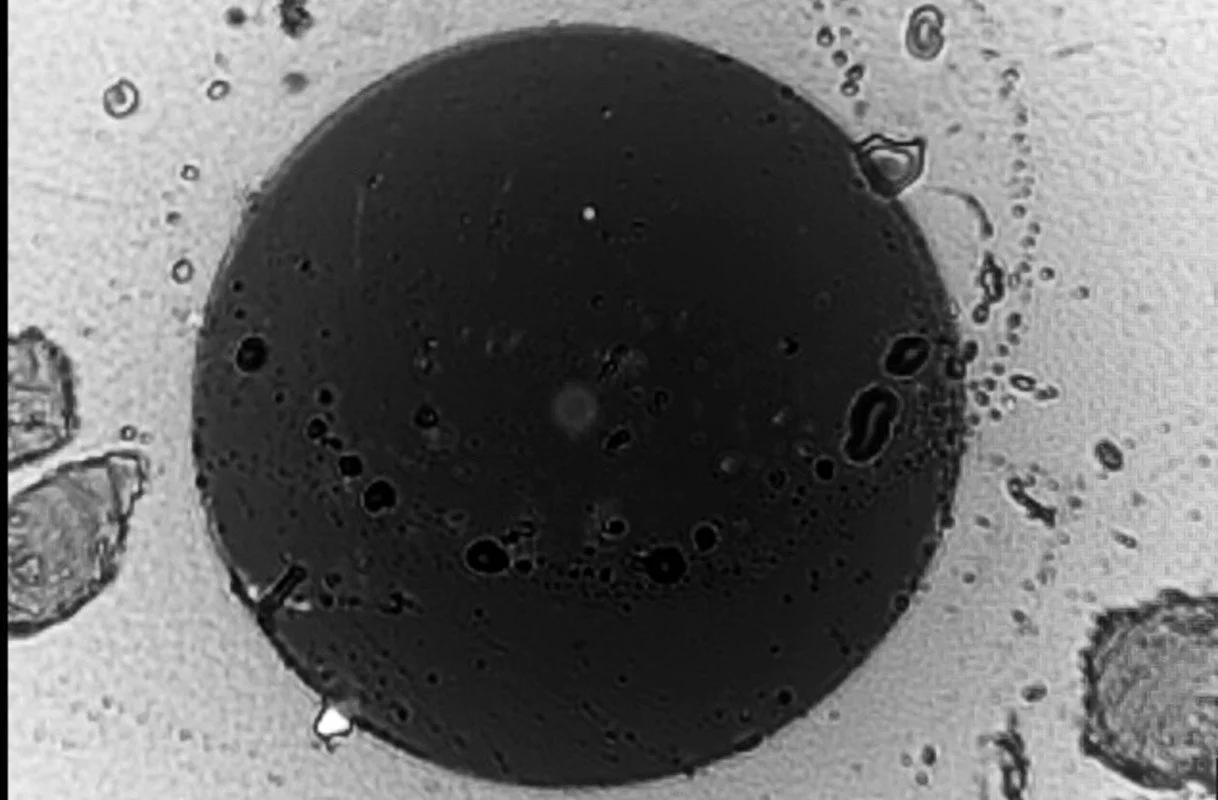

– Fiber microscope with adaptors for ST, SC, FC and LC connectors
– 4.3″ sunlight-readable touchscreen

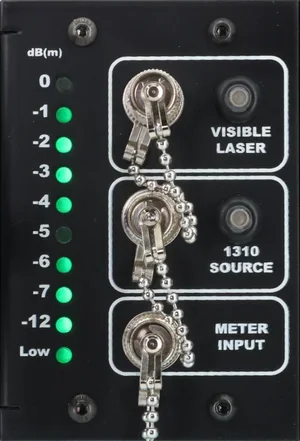

– Visible/Infrared/Meter (V.I.M.) Module
– 2x Slide-in empty slots available for expansion
If you are in the US, check out the FIBER-QC FLEX through The Fiber Guy.
If you are outside of the US, check out the BarnDr.
Optical Expansion Modules

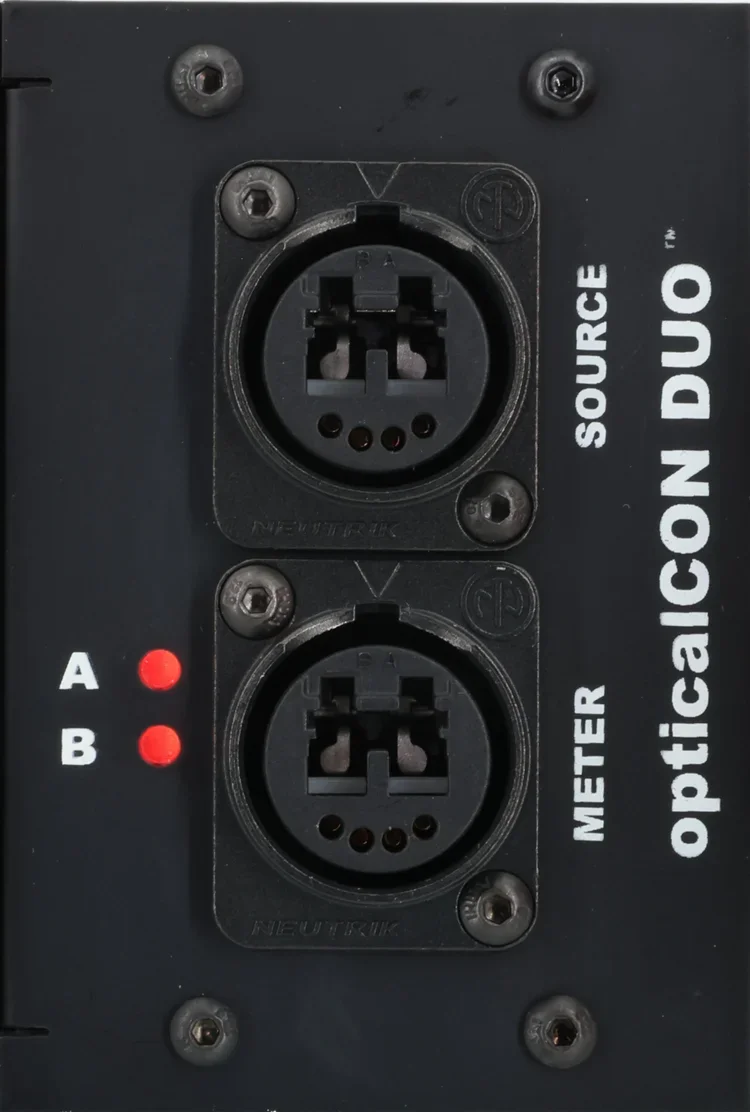

opticalCON DUO

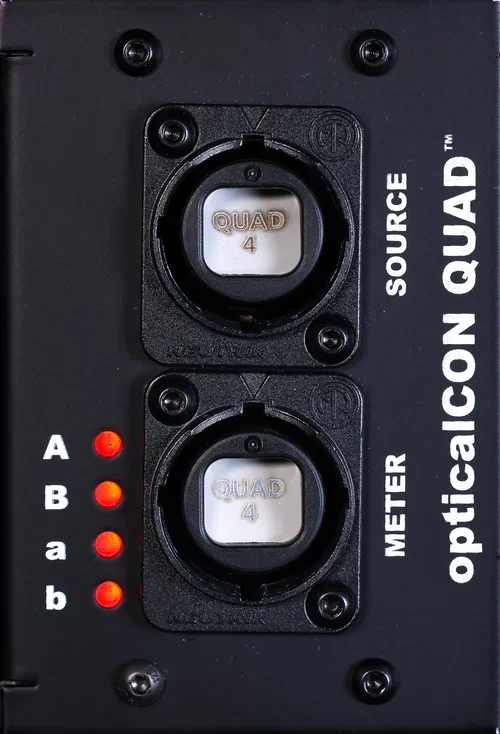

opticalCON QUAD

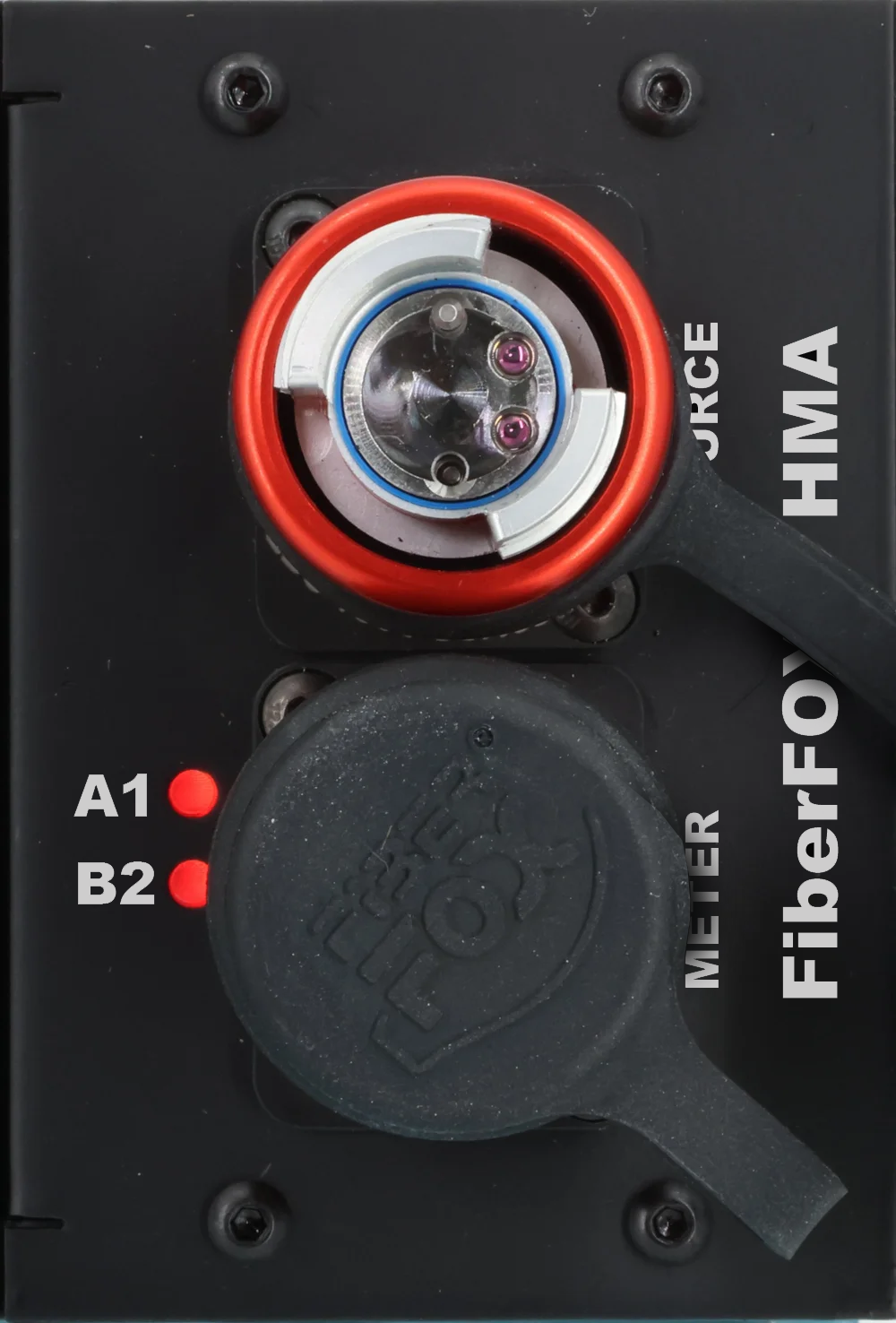

FIBERFOX / HMA
COMING SOON
SMPTE HFO
MTP
Technical Specifications
-
• Comes with both 2.5mm and 1.25mm mating adaptors to accommodate ST, SC, FC and LC fiber connectors
• Large, easy to use focus ring to quickly sharpen the image
• High quality 4.3” LCD touch screen display for easy viewing
• Users can lock the X/Y position into a fixed setting using set screws, or they may use the included thumb screws for quick, easy adjustments -
• Green lights show good power levels, yellow lights for low but measurable signal, and red for very low power levels

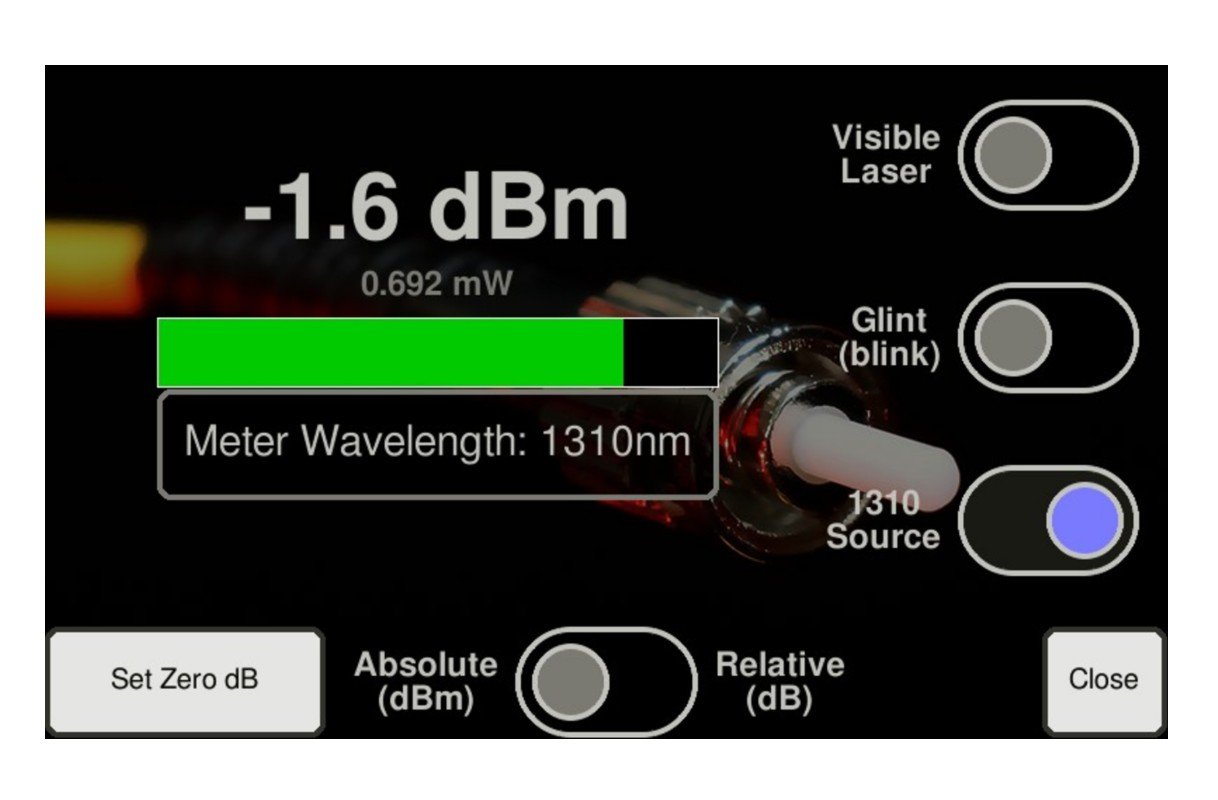

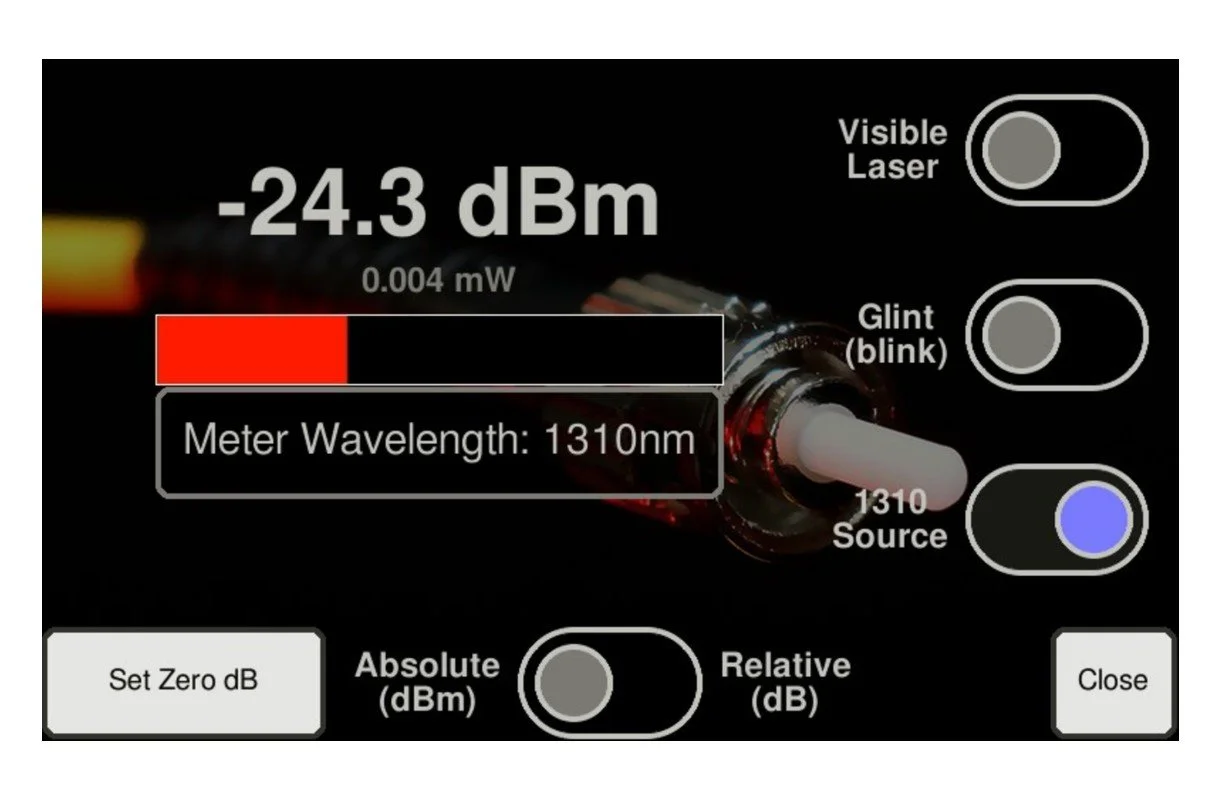

• The meter readout is also shown on a high-vis OLED screen showing precision power levels in several units. Absolute units shown as decibels with reference to one milliwatt(dBm) and actual milliwatts(mW)
• Hold the button to zero the meter to a reference level
• Connect to the power meter with a known good patch cable, then zero out the power meter. Now you can test any cable between the two LC connectors on the BarnDr. and take reliable measurements of the cable’s condition -
• Extremely simple use, just press the button to turn on the laser. Extremely handy to ID fiber lines or to cause breaks and tight bends visible in patch cables to glow
• At 2mW, the laser is powerful enough to get light to anywhere in your venue, but still safe and legal to use -
• IEC C13
• 100-240VAC, 15Watt -
• 433mm x 200mm x 85mm (17” x 7.9” x 3.3”)
• 5.3 kg -
• BarnDr.-base
• BarnDr.-opticalCON Duo (optional)
• BarnDr.-opticalCON QUAD (optional)
• BarnDr.-USB-probe (optional)
