The BarnColor and BarnPalette series
Designed to be a cost-effective solution for sending and receiving multiple signals both directions over an opticalCON DUO fiber cable, BarnColor and BarnPalette are the newest product lines from Barnfind Technologies.
Simple to use and easy to set up, we have taken all the complication away from fiber transport setup. – no technical knowledge or experience required.
Plug & Play
〰️
Save Time & Money for Onsite Rigging
〰️
No Latency
〰️
No Compression
〰️
Plug & Play 〰️ Save Time & Money for Onsite Rigging 〰️ No Latency 〰️ No Compression 〰️
The BarnPalette - MADI
8xLine
8xMic-Line
4xAES

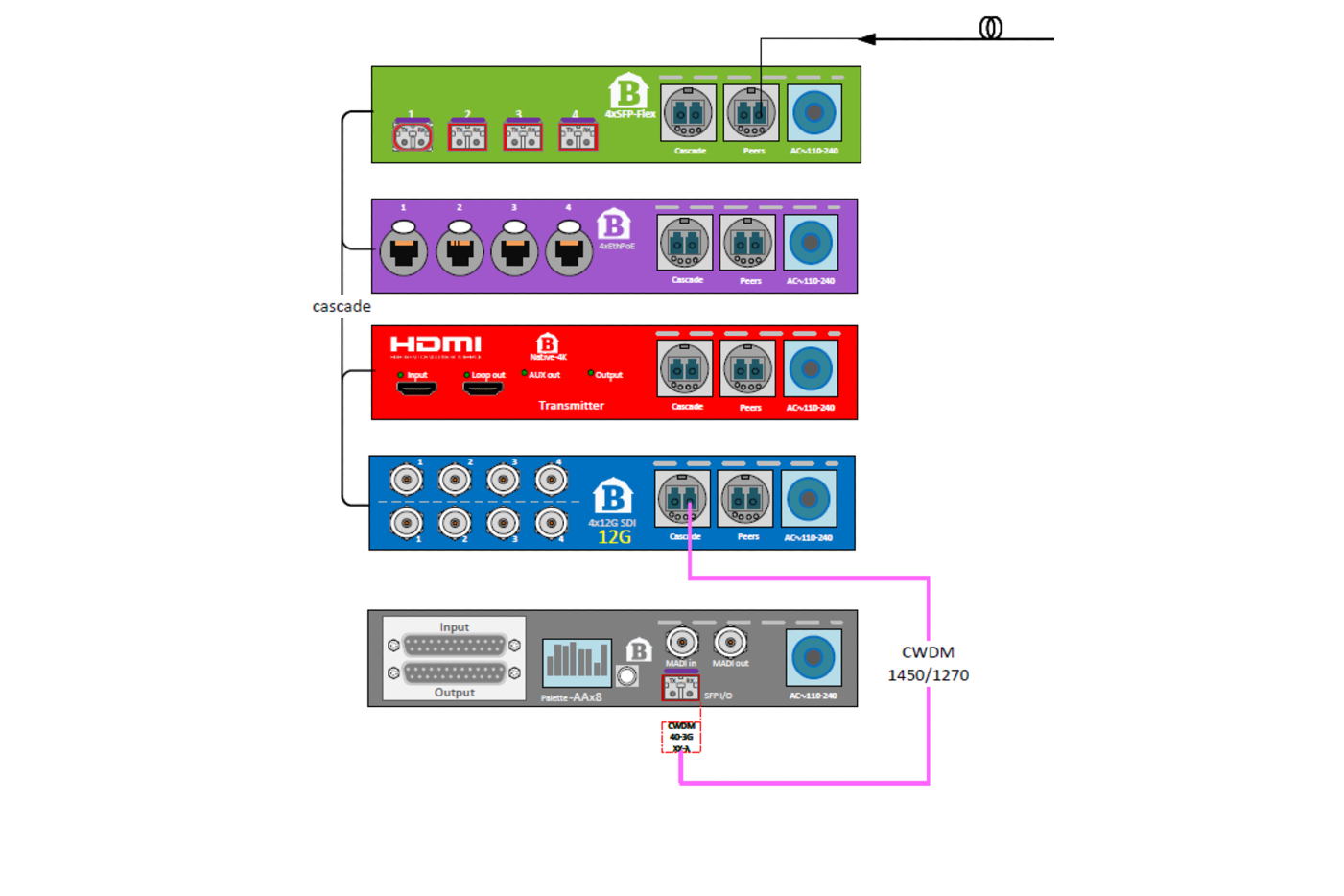

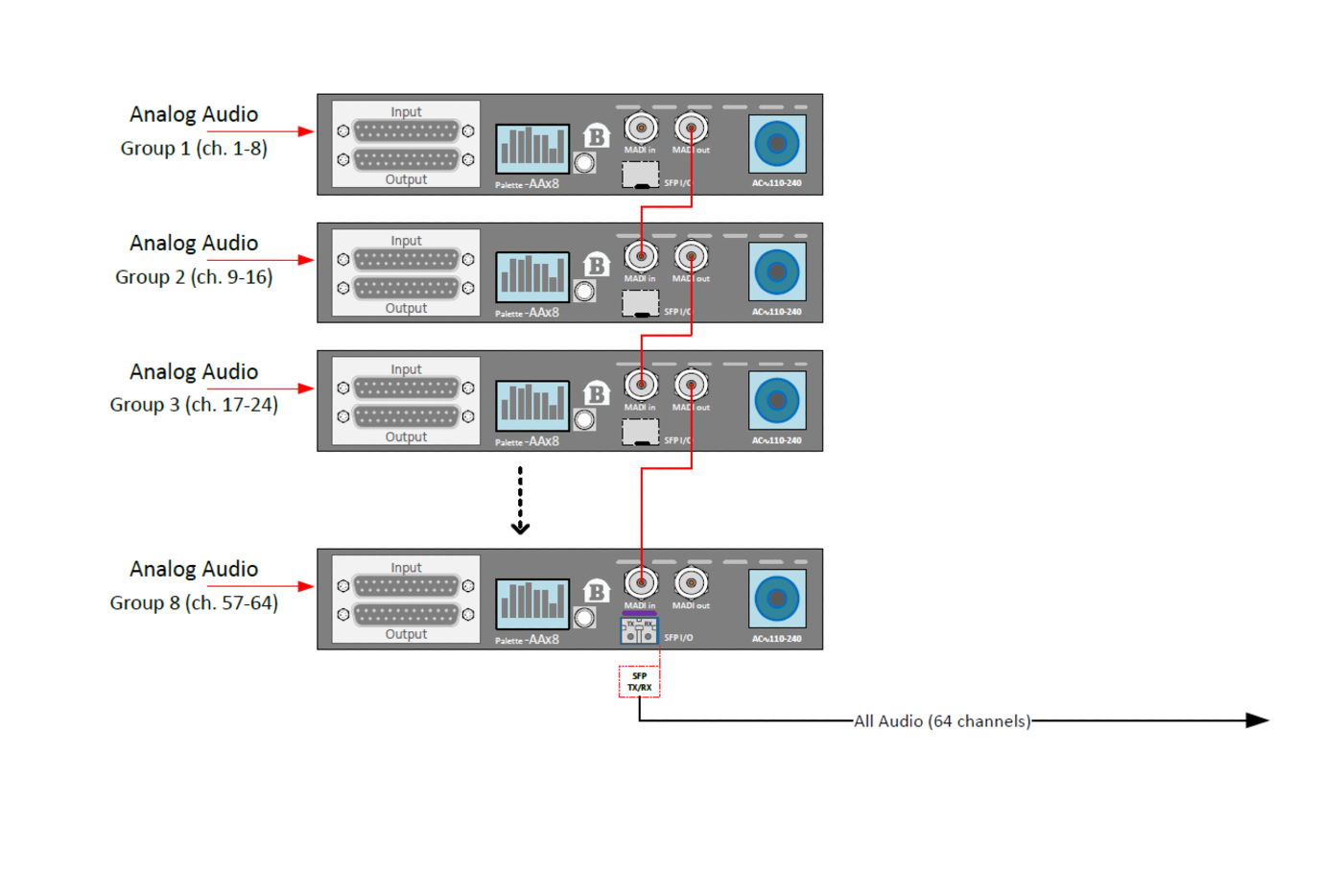

The BarnPalette-MADI offers a high-quality and robust solution for transporting analog audio over either fiber or copper. Compatible with BarnColor system or as a standalone product, each unit features 8x audio inputs and 8x audio outputs, and multiple BarnPalette-MADIunits can be inter-connected. Audio signals can be flexibly mixed and routed into a 64-channel MADI signal. MADI can be sent and received both via BNC ports and SFP port (fiber).
8xLine I/O module provides analog Line in and out audio.
8xMic.Line I/O module provides analog microphone level (with phantom power) in and line out audio.
4xAES I/O module provides AES3 digital in and out.
We recommend using single mode fibers when linking the BarnColor devices and BarnPalette devices.
Technical Specifications
-
• 223mm x 277mm x 44mm (8.8” x 10.9” x 1.7”)
• 1.4 kg -
• Neutrik powerCON or TRUE1
• AC 100V～240V
• 30Watt
8xLine I/O module - 8 channel line input/output
-
• 2 x DSUB-25 connector (input/output)*, according to AES59
-
• +15 / +18 / +24 dBu via jumper
-
• SNR: < -117,6 dB RMS (20 Hz – 20 kHz) / -119,9 dB(A)
• THD @ -1 dBFS: < -119 dB
• Frequency response: < -0,15 dB (10 Hz) / -0,15 dB (20 kHz)
-
• SNR: -116,8 dB RMS (20 Hz – 20 kHz) / -119,5 dB(A)
• THD @ -1 dBFS: -109 dB
• Frequency response: -0,5 dB (10 Hz) / -0,15 dB (20 kHz)
-
• BarnPalette-MADI-8xLine

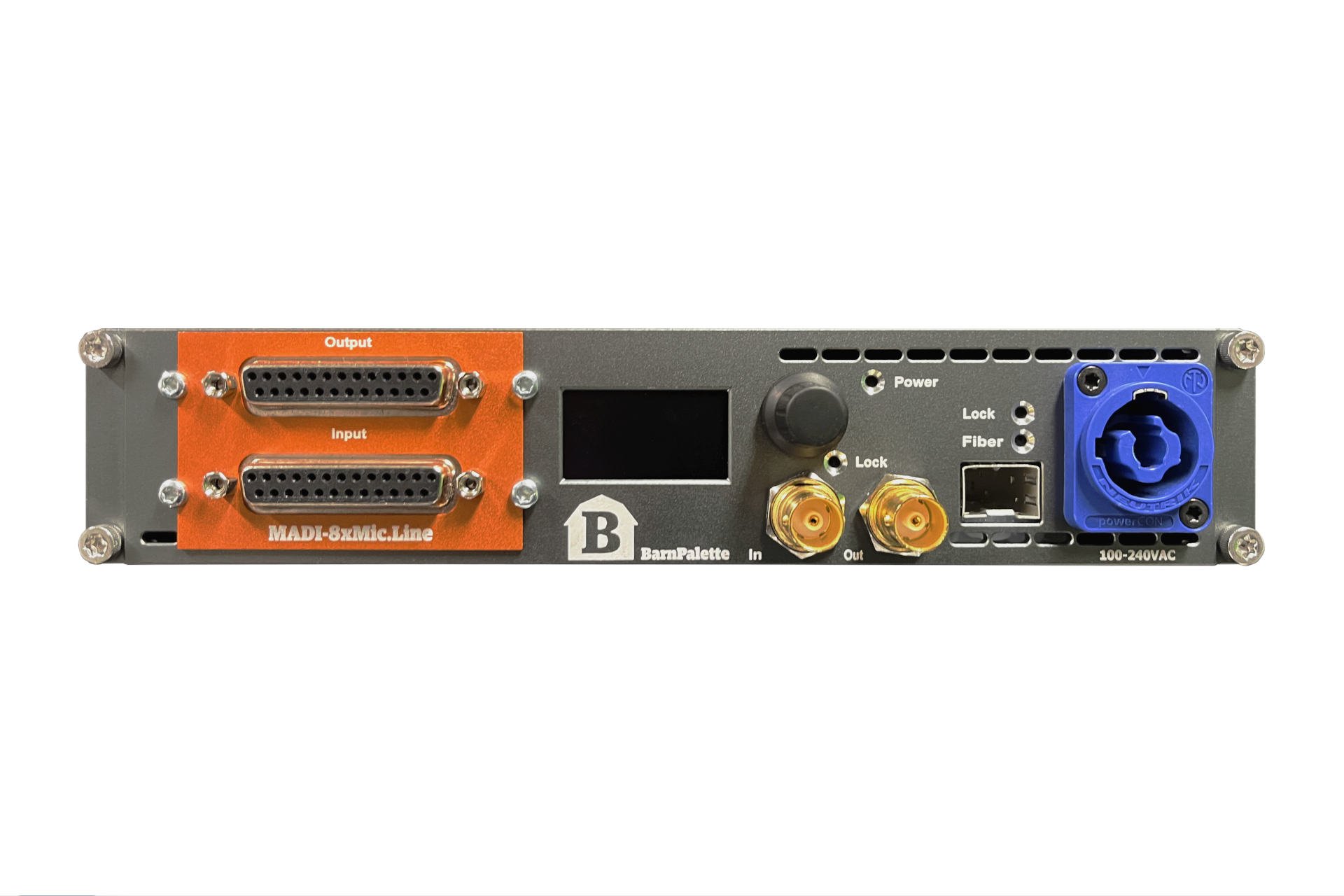

8xMic.Line I/O module - 8 channel mic line input/output
-
• 2 x DSUB-25 connector (input/output)*, according to AES59
-
• PAD: -9 dB, phantom power (+48 V, switchable)
• Input sensitivity: -55 dBu to +24 dBu EIN: -118 dBu
• THD @ -1 dBFS: -113 dB
• SNR: -115 dBFS (20 Hz – 20 kHz) / -118 dB(A) @ 0dB Gain
• Frequency response: -0.5 dB (10 Hz to FS/2)
-
• Reference levels: +15 / +18 / +24 dBu via jumper
• THD @ -1 dBFS:-109 dB
• SNR: -116,8 dB RMS (20 Hz – 20 kHz) / -119,5 dB(A)
• THD @ -1 dBFS: -109 dB Frequency response: -0,5 dB (10 Hz) / -0,15 dB (20 kHz)
-
• BarnPalette-MADI-8xMic.Line
4xAES I/O module - 4 ports AES3 - 8 channels
-
• 1 x DSUB-25 connector (input/output)*, according to AES59
-
• Switchable
-
• 44.1 kHz up to 192 kHz
-
• AES3 compliant
-
• BarnPalette-MADI-4xAES
