The BarnColor and BarnPalette series
Designed to be a cost-effective solution for sending and receiving multiple signals both directions over an opticalCON DUO fiber cable, BarnColor and BarnPalette are the newest product lines from Barnfind Technologies.
Simple to use and easy to set up, we have taken all the complication away from fiber transport setup. – no technical knowledge or experience required.
Plug & Play
〰️
Save Time & Money for Onsite Rigging
〰️
No Latency
〰️
No Compression
〰️
Plug & Play 〰️ Save Time & Money for Onsite Rigging 〰️ No Latency 〰️ No Compression 〰️
The BarnPalette - Flow-XS

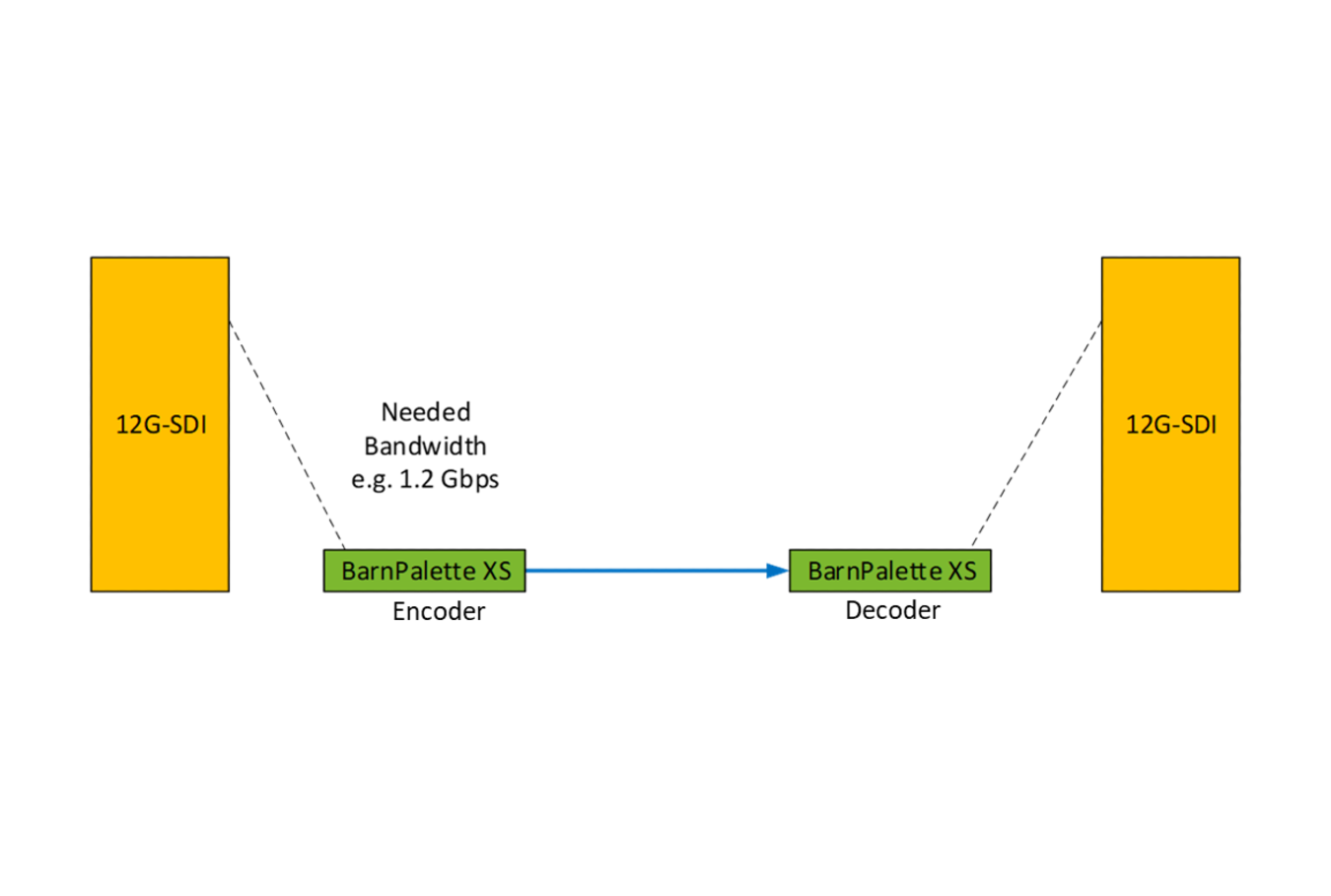

The BarnPalette-Flow-XS is empowered with the visual lossless JPEG-XS codec and enables visually-loss-less conversion of 4K and HD/3G video signal into ST-2110-22 JPEG-XS stream, with optional ST-2022-7 redundancy for protection against data loss. The conversion is performed with ultra-low delay.
4K JPEG-XS – A hardware converter that performs the essential yet straightforward conversion between SDI and SMPTE 2110-20/-30/-40.
NMOS Compatible – Supporting NMOS IS-04/05 enables smooth integration into systems.
Full Control WebGUI – Mode changes and settings for ENC/DEC, as well as PTP synchronization status checks, can be easily managed through an intuitive GUI.
We recommend using single mode fibers when linking the BarnColor devices and BarnPalette devices.
JPEG-XS Compression
Technical Specifications
-
• HD-SDI, 3G-SDI Level A, (*) 12G-SDI
-
• 4:2:2
-
• 10bit
-
• 50p, 59.94p, 60p
-
• 1x HD/3G-SDI,
(*) 4K (4x 3G-SDI, 1x 12G-SDI) -
• 1x HD/3G-SDI,
(*) 4K (4x 3G-SDI, 1x 12G-SDI) -
• 223mm x 277mm x 44mm (8.8” x 10.9” x 1.7”)
• 1.4 kg -
• Neutrik powerCON or TRUE1
• AC 100V～240V
• 30Watt -
• 0～95 F°
-
• 20%RH～80%RH
-
• BarnPalette-Flow-XS
(*) valid for 4K/12G-SDI model
