The BarnColor and BarnPalette series

Designed to be a cost-effective solution for sending and receiving multiple signals both directions over an opticalCON DUO fiber cable, BarnColor and BarnPalette are the newest product lines from Barnfind Technologies.

Simple to use and easy to set up, we have taken all the complication away from fiber transport setup. – no technical knowledge or experience required.

Plug & Play

〰️

Save Time & Money for Onsite Rigging

〰️

No Latency

〰️

No Compression

〰️

Plug & Play 〰️ Save Time & Money for Onsite Rigging 〰️ No Latency 〰️ No Compression 〰️

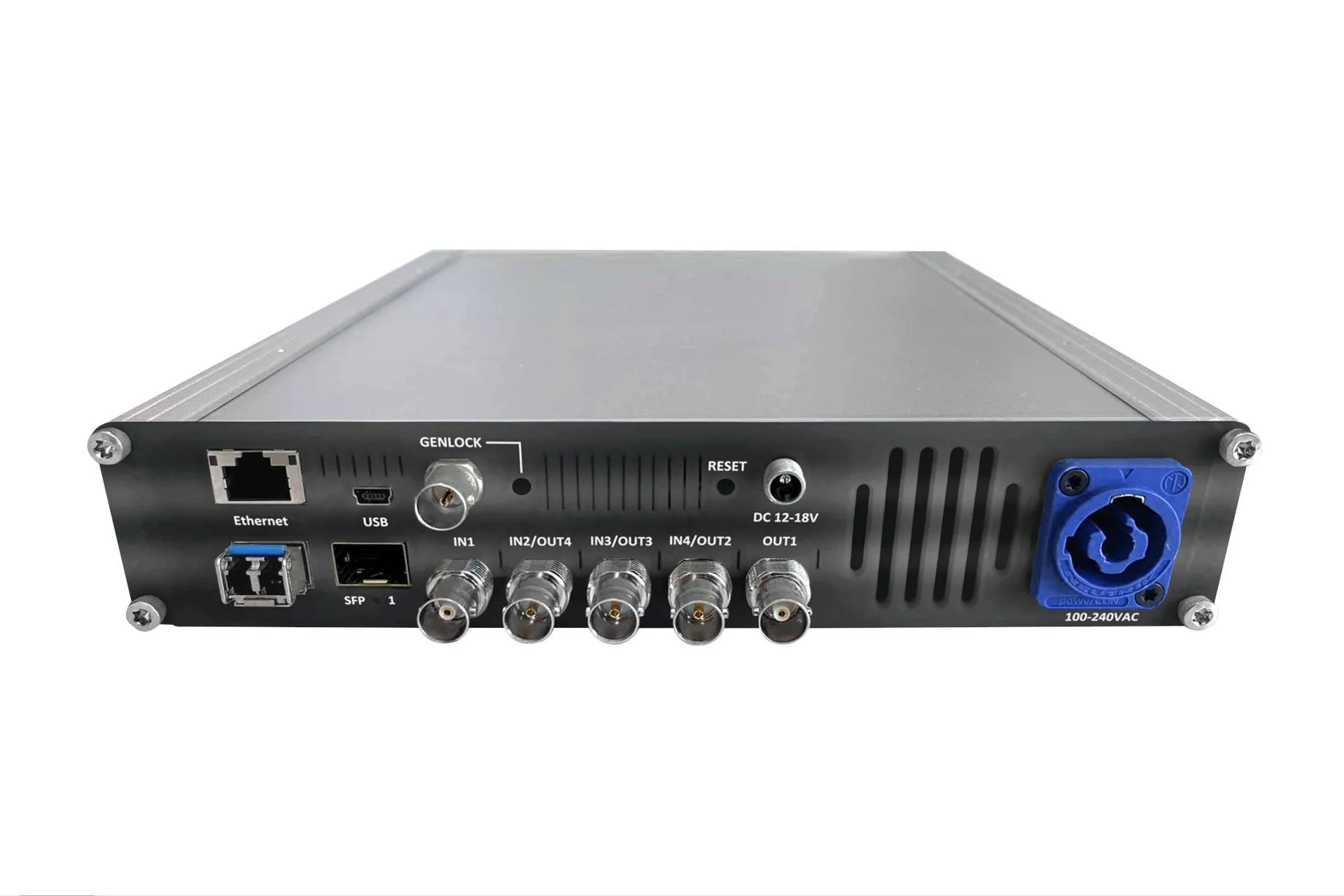

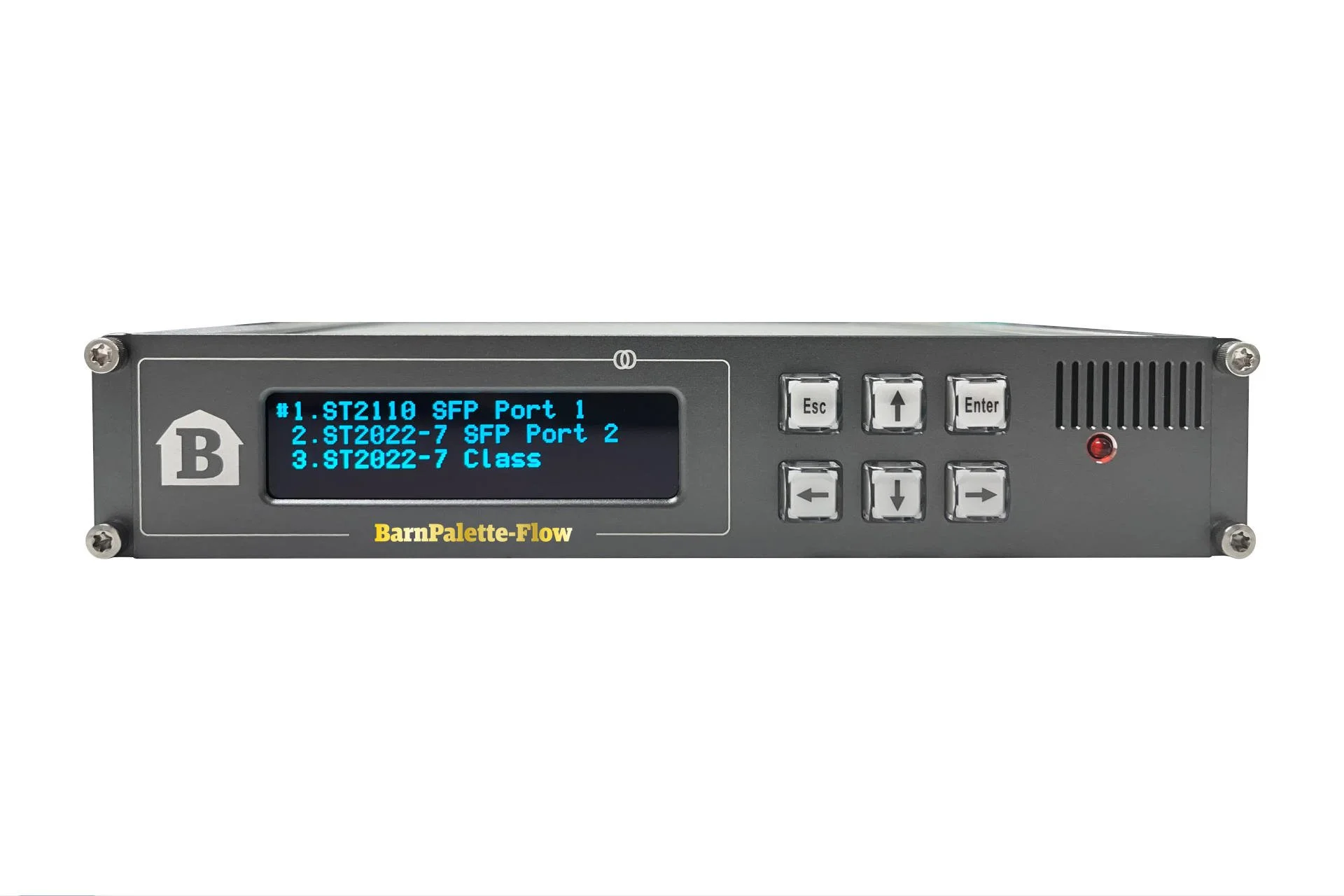

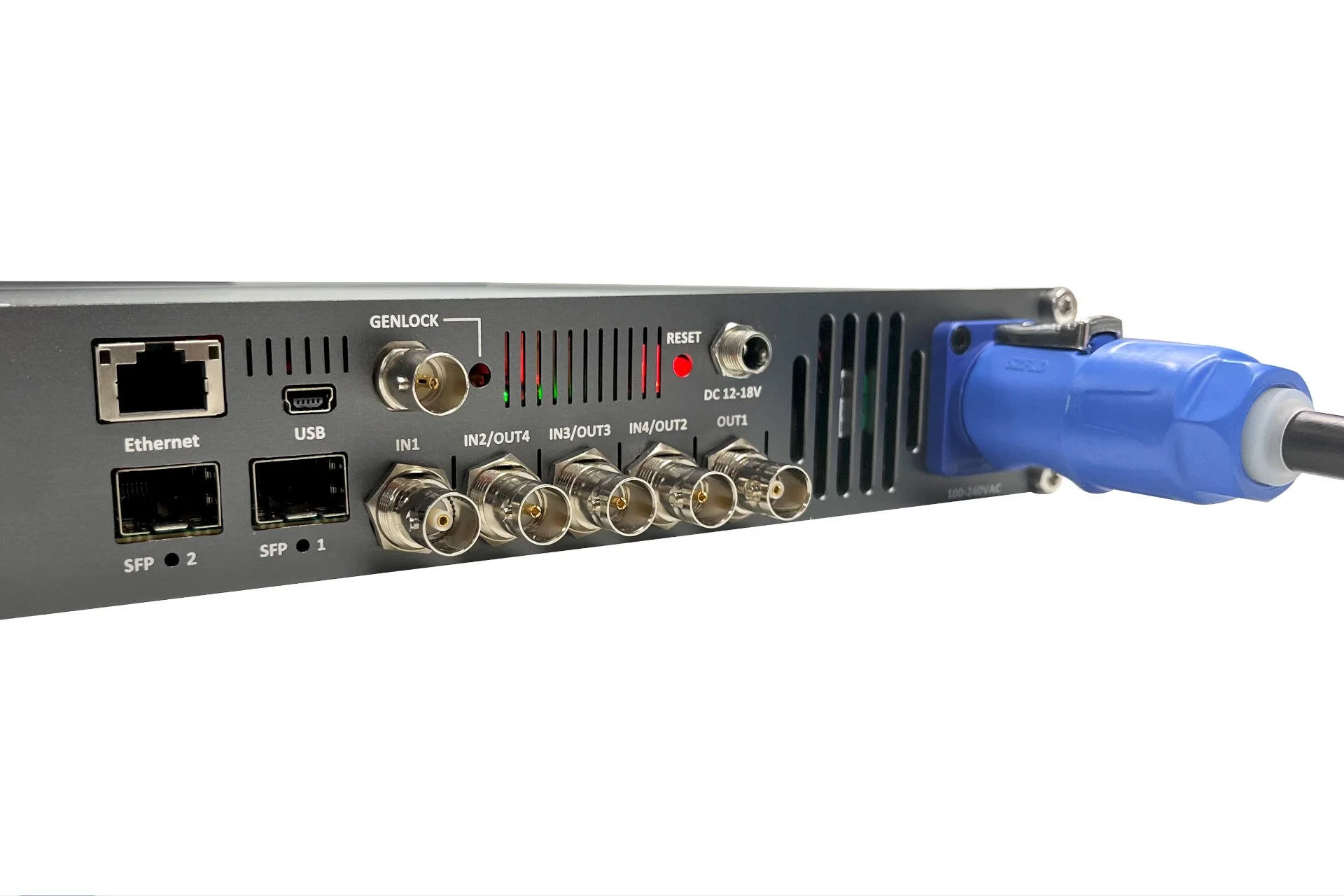

The BarnPalette - Flow-3G / Flow-12G

The BarnPalette-OCS is a converter that is capable of transmitting 4x3G-SDI or 1x12G-SDI over ST-2110 IP signals, and the IP interface supports 25G. A single unit can handle up to four signals for encapsulate (ENC) or decapsulate (DEC). Users can easily switch between ENC and DEC modes via the front panel, and also possible through WebGUI. Video, audio, and ancillary data are compliant with ST-2110, ST-2059, and NMOS IS-04/05 standards.

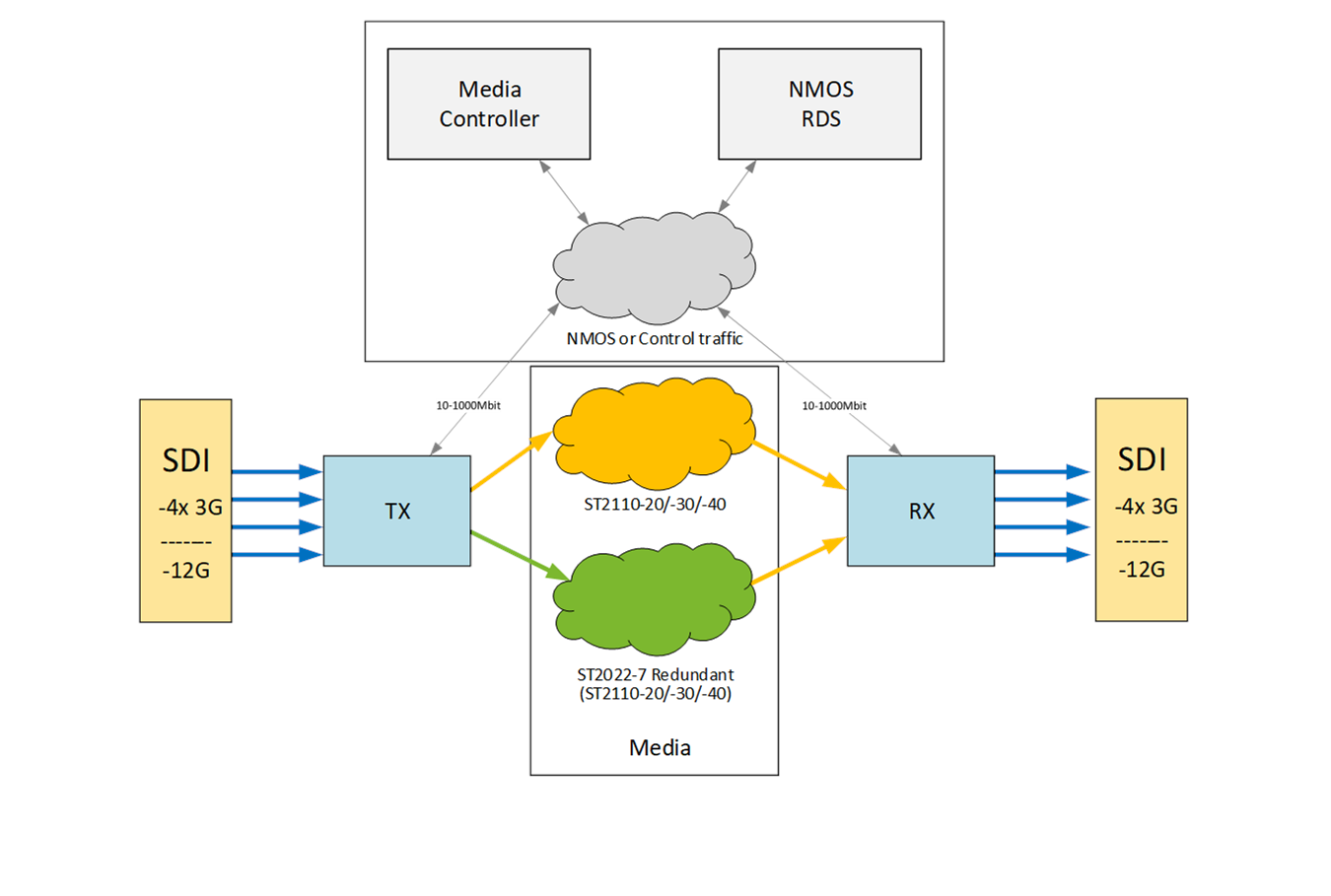

SDI Over IP – A hardware converter that performs the essential yet straightforward conversion between SDI and SMPTE 2110-20/-30/-40.

NMOS Compatible – Supporting NMOS IS-04/05 enables smooth integration into systems.

Full Control WebGUI – Mode changes and settings for ENC/DEC, as well as PTP synchronization status checks, can be easily managed through an intuitive GUI.
