The BarnOne series
The BarnOne series of signal transport frames provide a 32 x 32 built-in routing system with a combination of BNC and SFP I/O ports to satisfy any application. Several combinations of SFP-ports, BNCs and multiplexer are available.

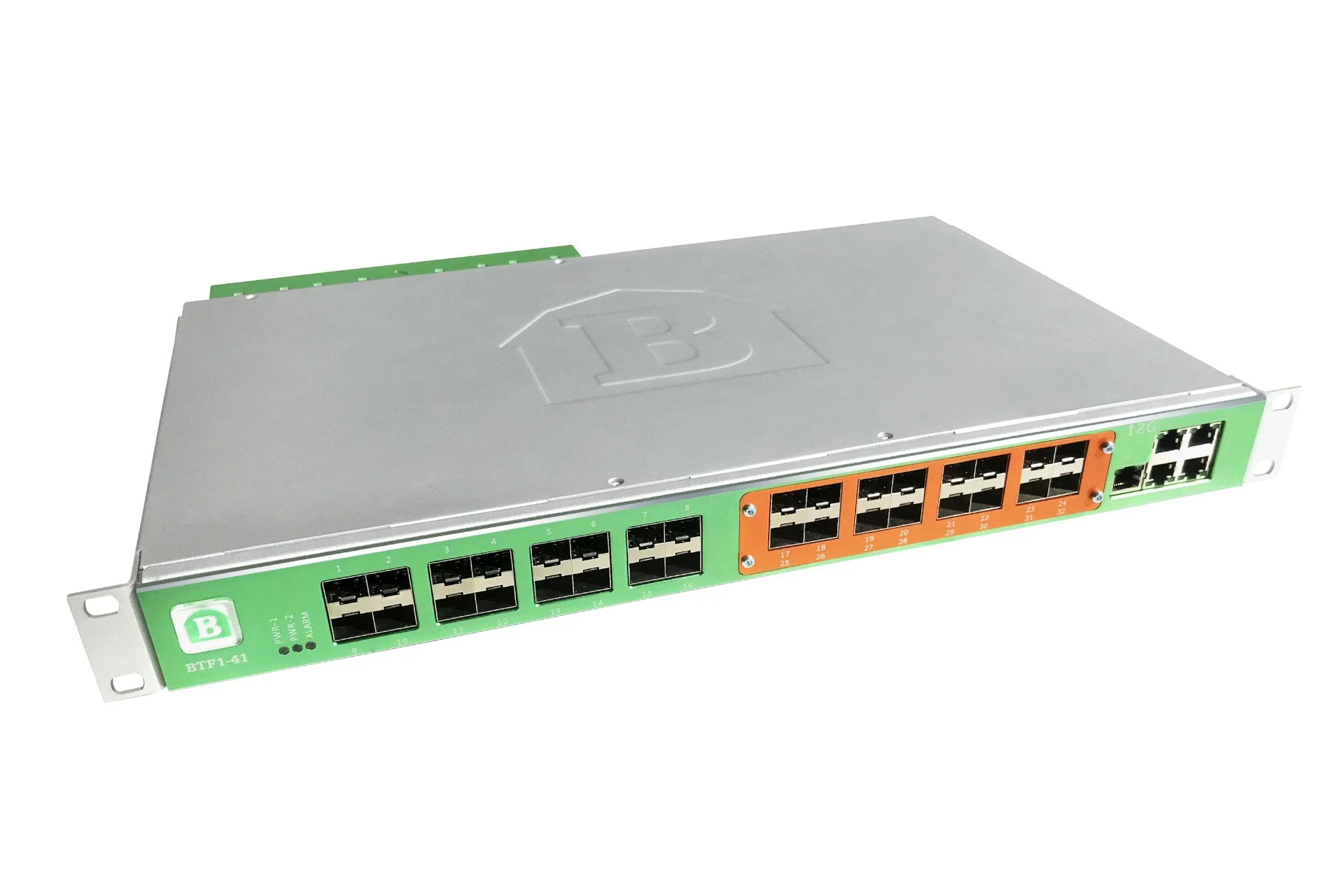

The BarnOne - BTF1-41-SFP16
Extension Card (BTF1-41)

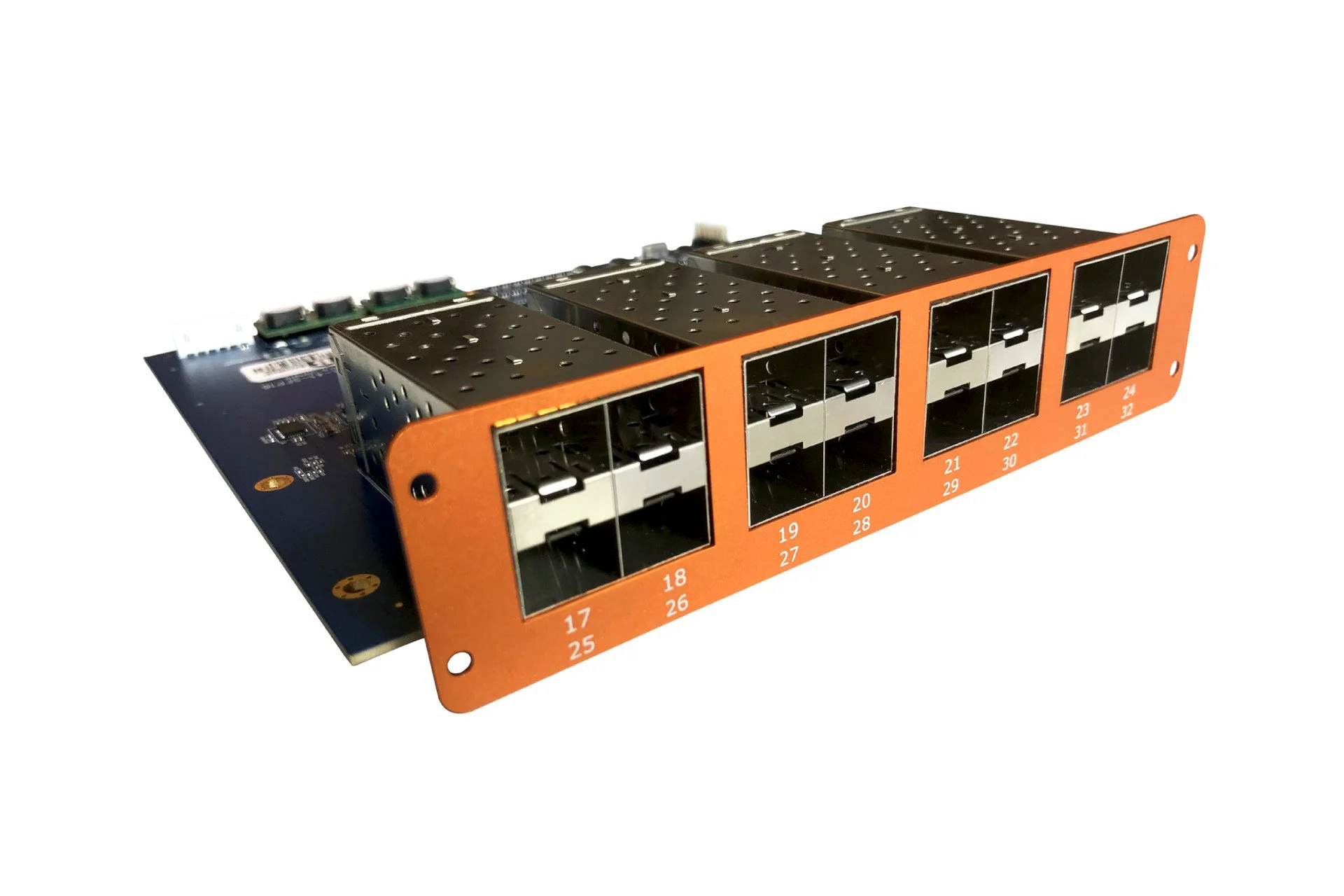

The BTF1-41-SFP16 is an extension board for BarnOne BTF1-41. It adds 16 more SFP cages expanding the capabilities from 16 to 32 transceiver SFP cages.
Technical Specifications
-
• 16x SFP+ ports (enhanced small formfactor pluggable) for transceivers, MSA and non-MSA compliant, up to 12Gbps
• SMPTE 259M, 292M, 372M, 424M, 297M, ST 2081, ST 2082, DVB-ASI
• SFP modules are hot pluggable/swappable
• Single-mode, multi-mode or media-converter SFP modules
• Multirate reclocking of outputs 125Mbps – 12Gbps -
• Provided by BTF1-41 mainframe
-
• BTF1-41-SFP16 extension board for BTF1-41
-
• BTF1-41-SFP1
