The BarnOne series
The BarnOne series of signal transport frames provide a 32 x 32 built-in routing system with a combination of BNC and SFP I/O ports to satisfy any application. Several combinations of SFP-ports, BNCs and multiplexer are available.

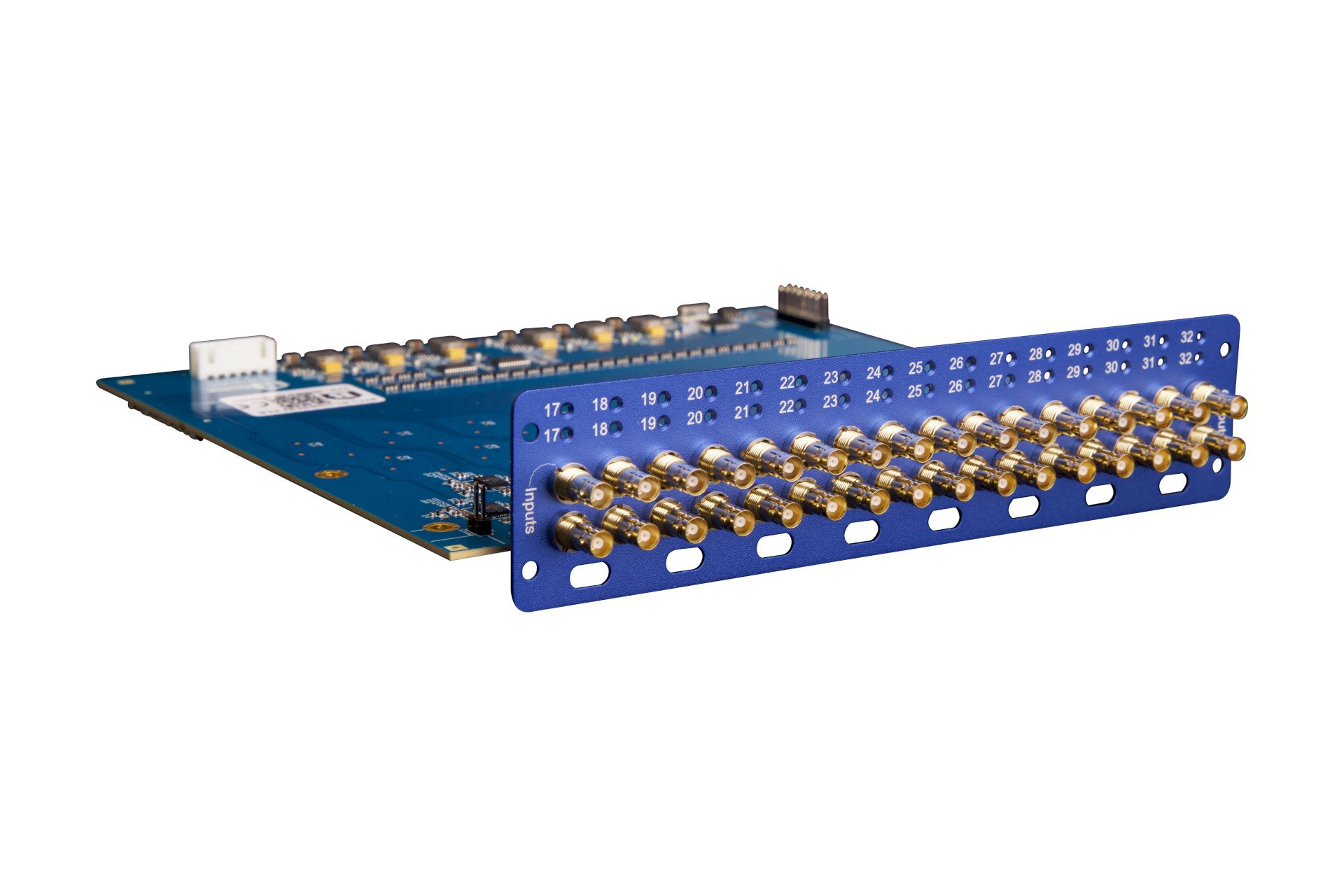

The BarnOne - BTF1-41-HDBNC
The BTF1-41-HDBNC is an extension card for BarnOne BTF1-41. It adds 16 HDBNC inputs and 16 HDBNC outputs to the 1U rack mount, expanding its capacity with additional inputs and outputs connected directly to the internal crosspoint switch. It is ideal for applications that require a high-density of SFP+ ports and HDBNC ports, such as video production, broadcast, and telecommunications.
Technical Specifications
-
• 16x HDBNC inputs up to 12Gbps
• 16x HDBNC outputs up to 12Gbps
• SMPTE 259M, 292M, 372M, 424M, 297M, ST 2081, ST 2082, DVB-ASI, MADI
• Multirate reclocking of outputs 125Mbps – 12Gbps -
• Provided by BTF1-41 mainframe
-
• BTF1-41-HDBNC extension board for BTF1-41
-
• BTF1-41-HDBNC
