The BarnMini series
The BarnMinis are ideal for standalone solutions and solve everything from a simple task to more comprehensive solutions. BarnMinis can be used in conjunction with other Barnfind products to empower complete distributed systems in larger facilities.

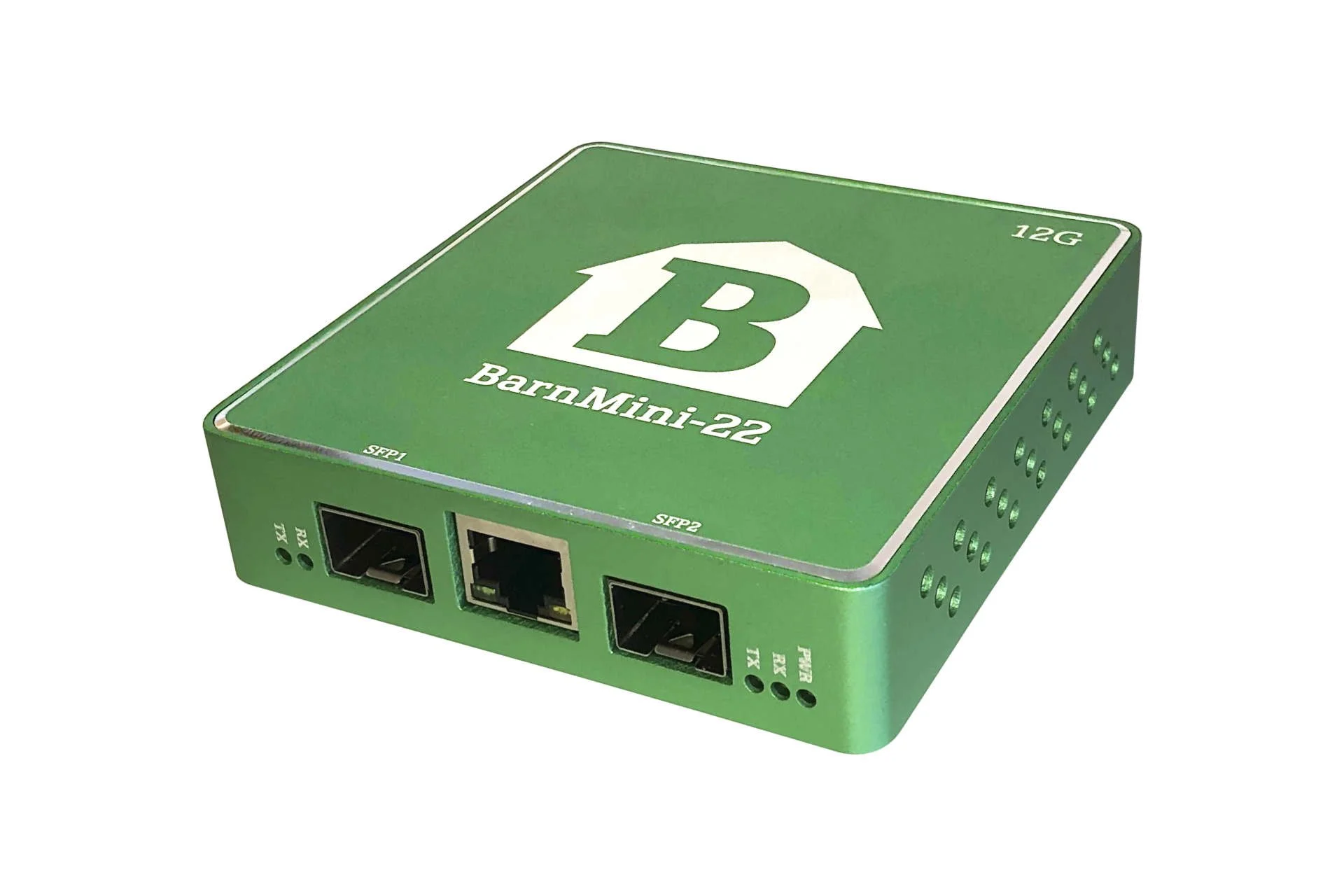

BarnMini - 22 (10G/12G)
The BarnMini series are made of robust materials in an elegant design. BarnMini-22 is the heir of BarnMini-02, increasing the maximum bandwidth up to 12G and adding remote monitoring via TCP/IP.
BarnMini-22 can be used for fiber conversion between multimode and single mode, Ethernet to fiber, CWDM fiber color conversion or any other combination of signals depending on the SFP selections.
BarnMini-22 is a “Norwegian army knife” – application can be changed on the fly by replacing the SFPs.
All BarnMini modules can be used as a standalone box or in a more sophisticated system with BarnOne or BarnColor.

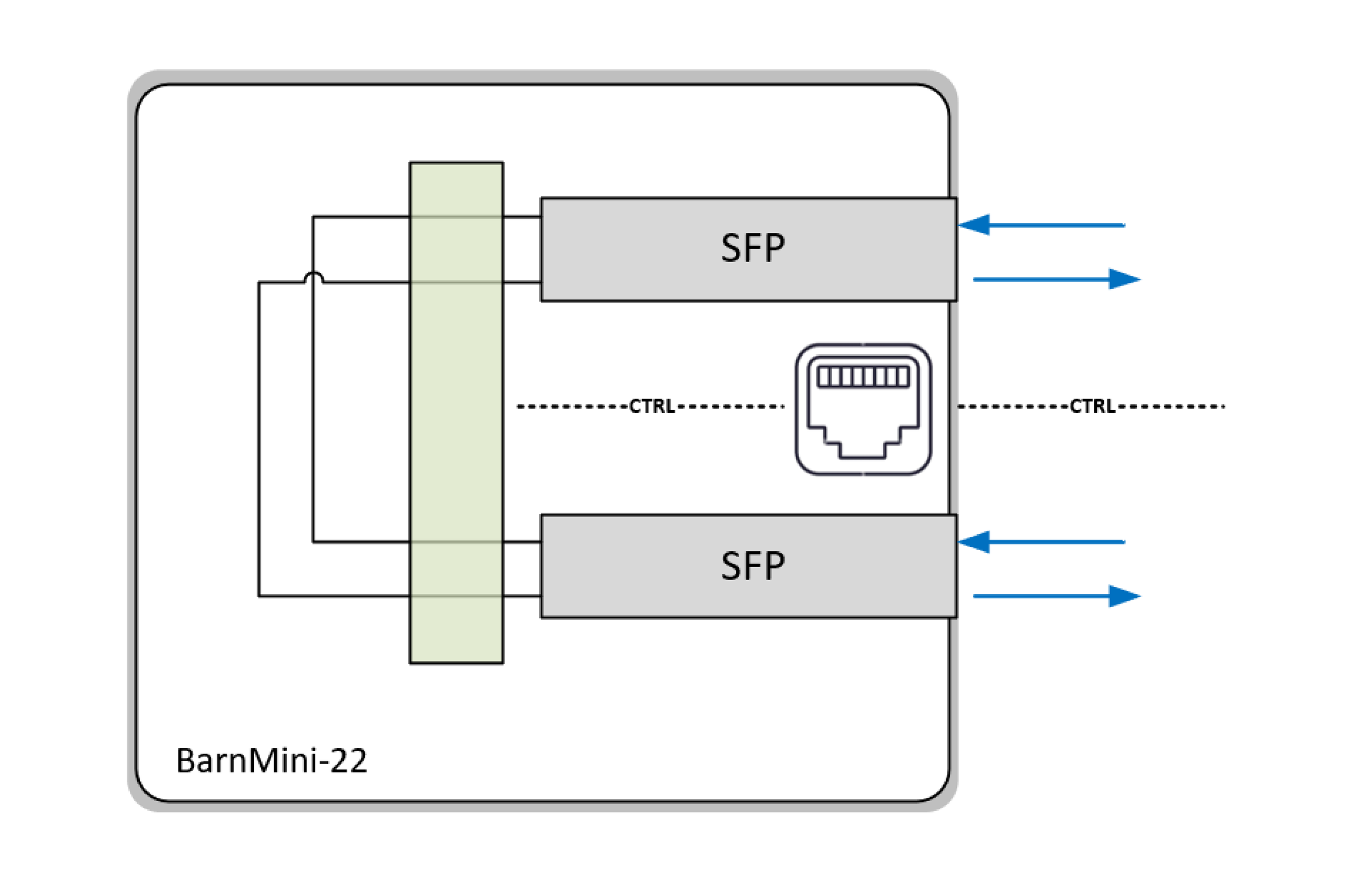

SFP to SFP converter
Technical Specifications
-
• 2x SFP+ port (small formfactor pluggable) for transceivers, MSA compliant and non-MSA compliant, up to 12Gbps
• SMPTE 259M, 292M, 372M, 424M, 372M, ST-2081, ST-2082, DVB-ASI, AES10 (MADI), AES3, IEEE 802.3ae
• Multirate reclocking of outputs 100Mbps – 12Gbps
• SFP modules are hot pluggable/swappable
• Single-mode, multi-mode or media-converter SFP modules -
• 1x RJ45 connector
• 10/100 Mbps Ethernet -
• 12-24V DC, power supply included
• Redundant power supply available with BTF-Mini-16 -
• 92mm x 98mm x 22mm
• 200g -
• BarnMini-22
