The BarnMini series

The BarnMinis are ideal for standalone solutions and solve everything from a simple task to more comprehensive solutions. BarnMinis can be used in conjunction with other Barnfind products to empower complete distributed systems in larger facilities.

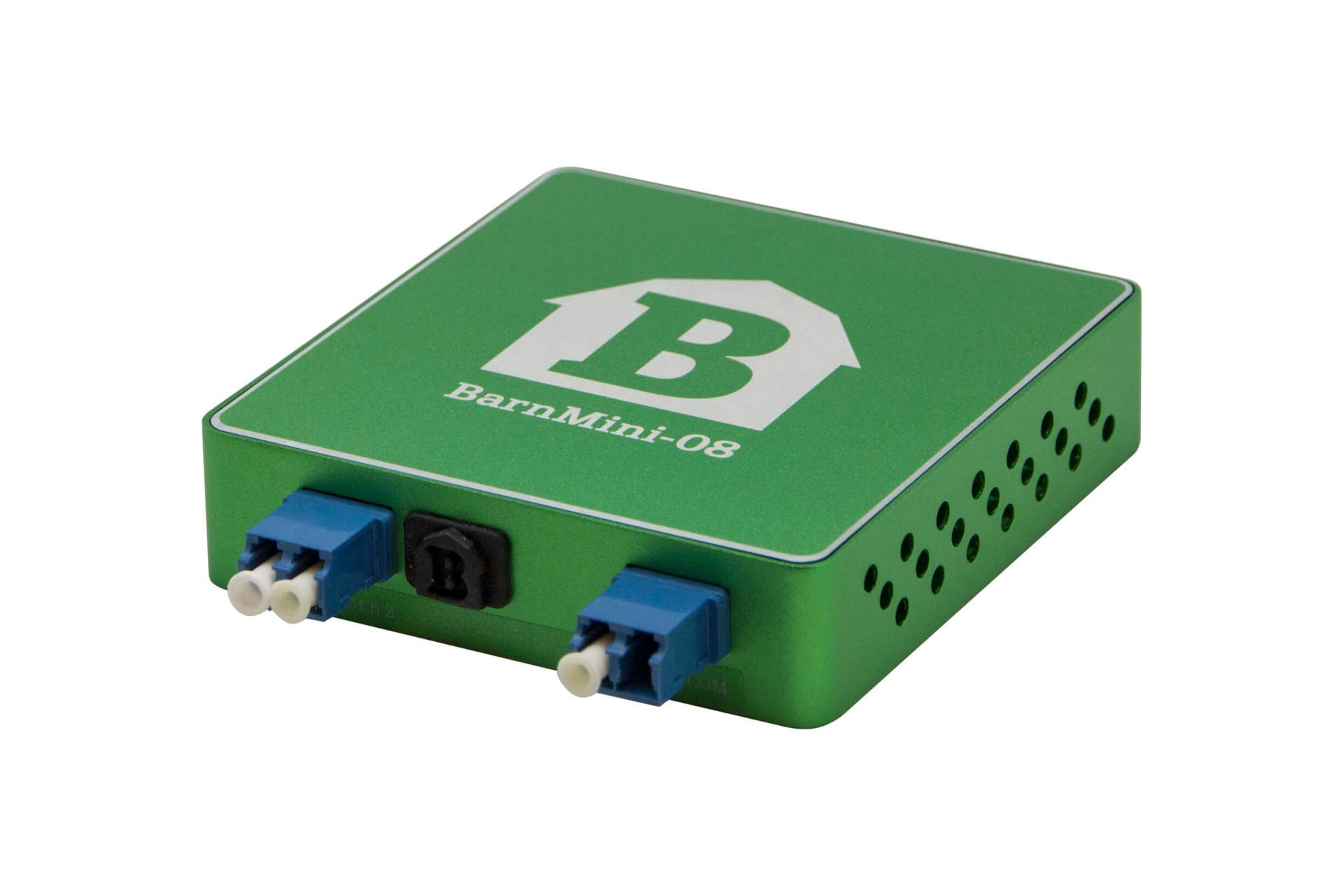

BarnMini - 08

The BarnMini series are made of robust materials in an elegant design. BarnMini-08-1:2 & BarnMini-08-1:4 are devices that split the optical signal into 2 or 4 identical copies.

Typical use cases are distribution or signal duplication for redudancy; usually combined with CWDM optical multiplexers for maximum utilization of the fibers.

All BarnMini modules can be used as a standalone box or in a more sophisticated system with BarnOne or BarnColor.

Optical splitter

BACK TO BARNMINI OVERVIEW
BACK TO "See all products"

Technical Specifications

  • • LC/PC connectors
    • BarnMini-08-1:2: Insertion Loss <1,2dB + 3dB
    • BarnMini-08-1:4: Insertion Loss <1,2dB + 6dB
    • Adjacent Channel Isolation >35dB
    • Non-Adjacent Channel Isolation >45dB
    • Polarisation dependant loss <0,10dB

  • • 92mm x 98mm x 22mm
    • 200g

  • • BarnMini-08-1:2
    • BarnMini-08-1:4

Downloads

Accessories

  1. The BarnMini Frame

    • BTF-Mini-16 is a housing with space for up to 16 x BarnMini modules of any kind
