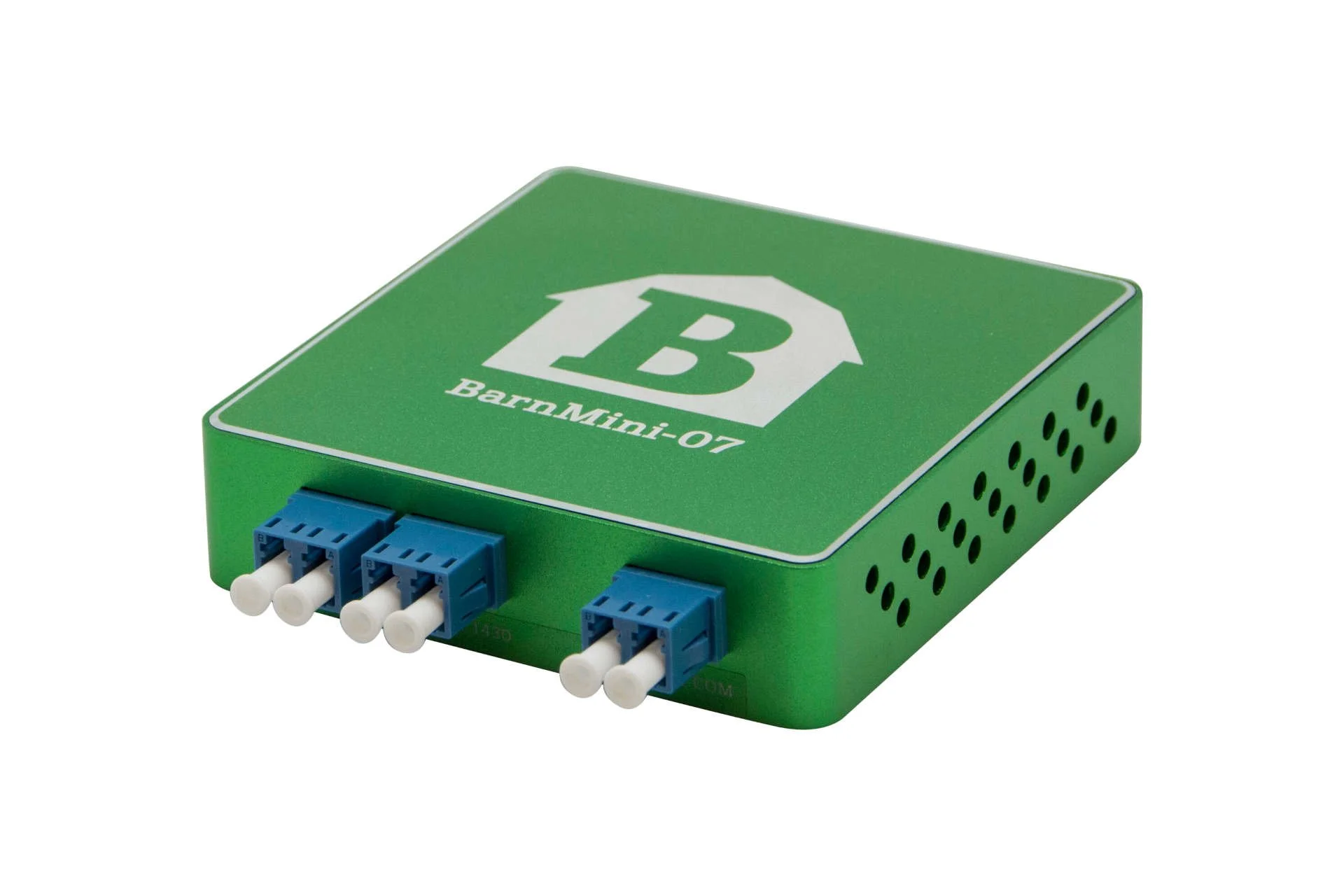

BarnMini - 07

The BarnMini series are made of robust materials in an elegant design. BarnMini-07 is a 4-channel CWDM multiplexer that can be used for e.g. transportation of 4x optical SDI, ASI, MADI or data on one single fiber.

Multiple BarnMini-07 can be combined to make an even bigger multiplexer and it is compatible with the ITU CWDM standard.

All BarnMini modules can be used as a standalone box or in a more sophisticated system with BarnOne or BarnColor.

Optical Multiplexer (de-multiplexer)

BACK TO BARNMINI OVERVIEW
BACK TO "See all products"

Technical Specifications

  • • LC/PC connectors
    • BarnMini-07-2935: (1290, 1310, 1330 and 1350) according to ITU-T G694.2
    • BarnMini-07-3743: (1370, 1390, 1410 and 1430) according to ITU-T G694.2
    • Channel clear passband +/-6,5nm
    • Insertion Loss <1,2dB
    • Passband ripple <0,5 dB Adjacent Channel Isolation >30dB
    • Non-Adjacent Channel Isolation >45dB
    • Polarisation dependant loss 0,02dB
    • Directivity >50dB
    • Return loss >45dB
    • Polarisation Mode Dispersion <0,2ps

  • • 92mm x 98mm x 22mm
    • 200g

  • • BarnMini-07-2935
    • BarnMini-07-3743
    • please contact us for other variants
