The BarnMini series
The BarnMinis are ideal for standalone solutions and solve everything from a simple task to more comprehensive solutions. BarnMinis can be used in conjunction with other Barnfind products to empower complete distributed systems in larger facilities.

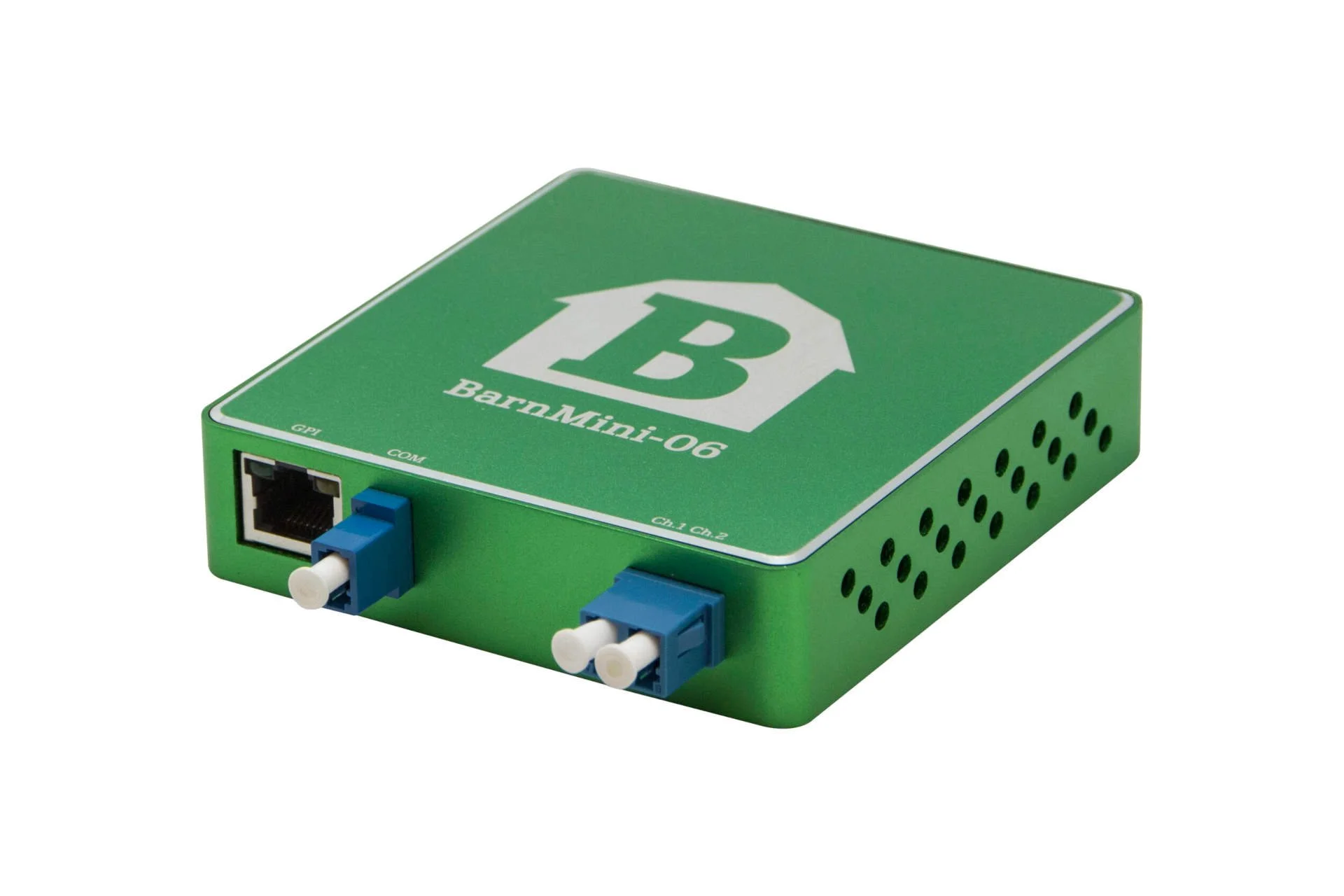

BarnMini - 06
The BarnMini series are made of robust materials in an elegant design. BarnMini-06 is an optical changeover switch that is controlled by a GPO signal. BarnMini-05, BTF1-41 or 3rd party products may be used to control the switch.
A typical application is to select between two different redundant fiber paths.
All BarnMini modules can be used as a standalone box or in a more sophisticated system with BarnOne or BarnColor.

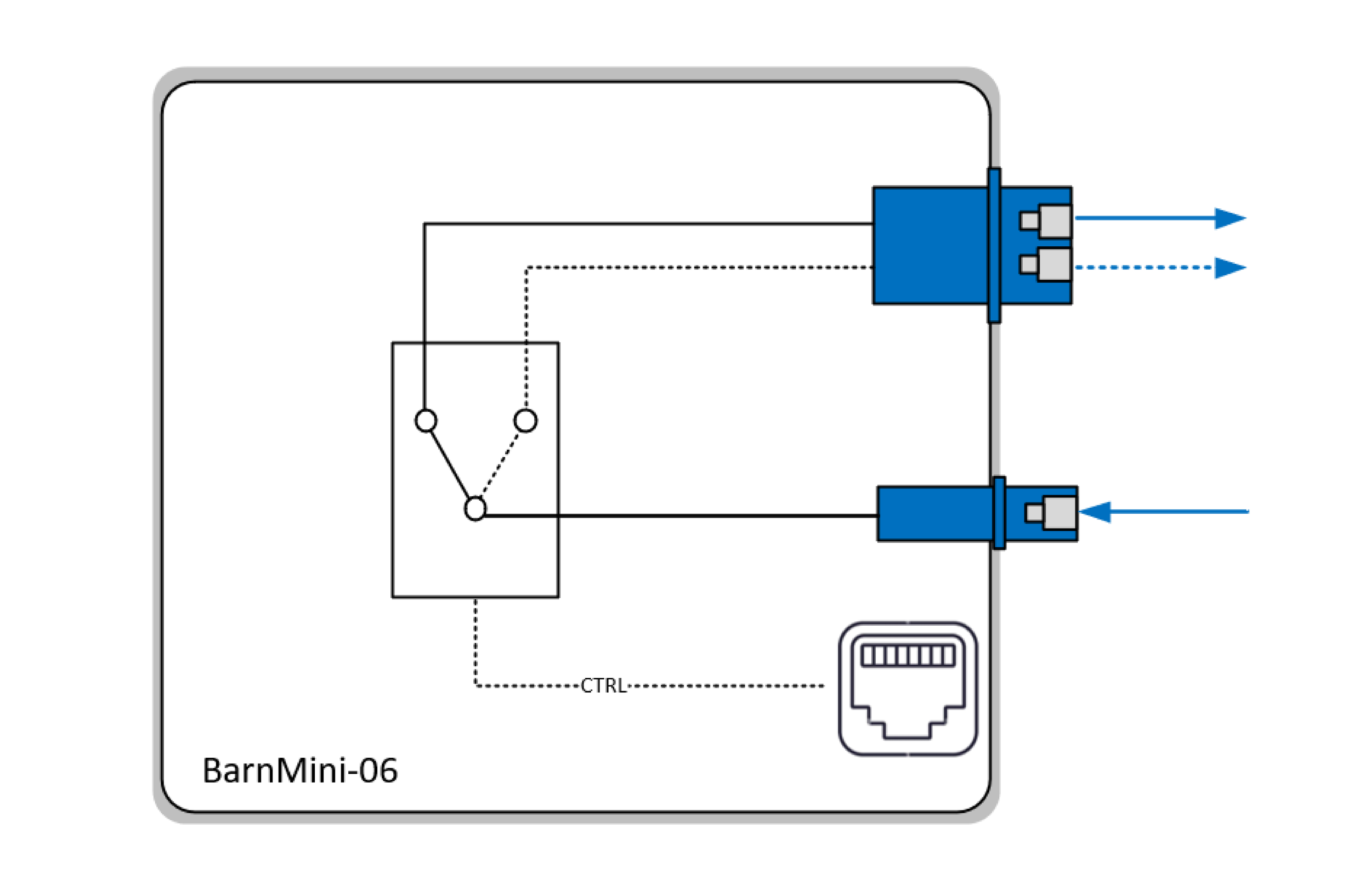

Optical changeover switch
Technical Specifications
-
• LC/PC connectors
• Operating Wavelength 850-1620nm
• Fiber type: Single Mode
• Insertion Loss <1,2dB
• Wavelength dependant loss <0,3dB
• Polarisation dependant loss 0,05dB
• Crosstalk >35dB
• Return loss >35dB -
• Switching time <10ms (typically 4ms)
• Max. switching cycles 10.000 -
• RJ45 connector with 4x GPI wired parallel, non latching
-
• 12-24V DC, power supply included
-
• 92mm x 98mm x 22mm
• 200g -
• BarnMini-06
