The BarnMini series
The BarnMinis are ideal for standalone solutions and solve everything from a simple task to more comprehensive solutions. BarnMinis can be used in conjunction with other Barnfind products to empower complete distributed systems in larger facilities.

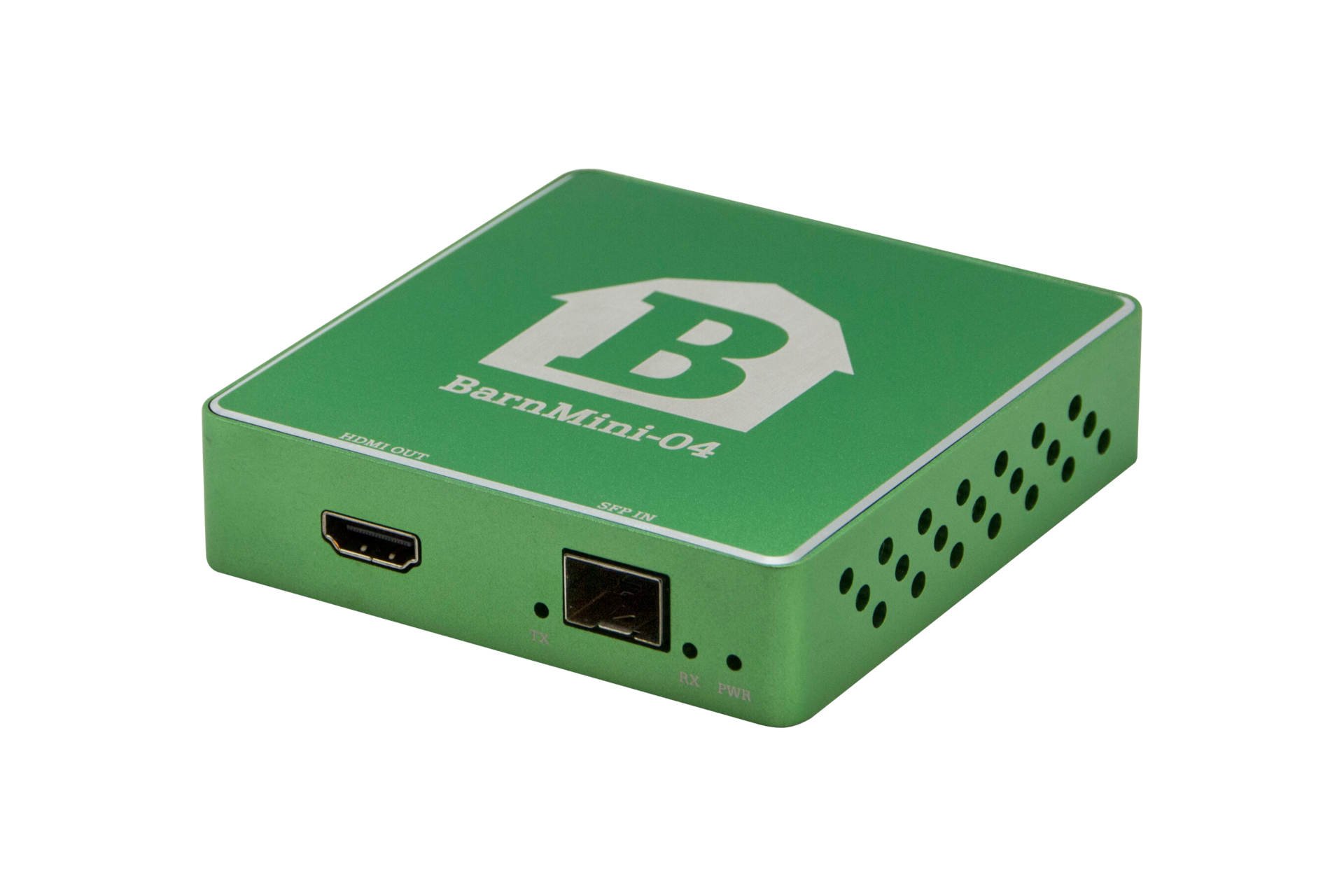

BarnMini - 04
SFP (SDI) to HDMI converter

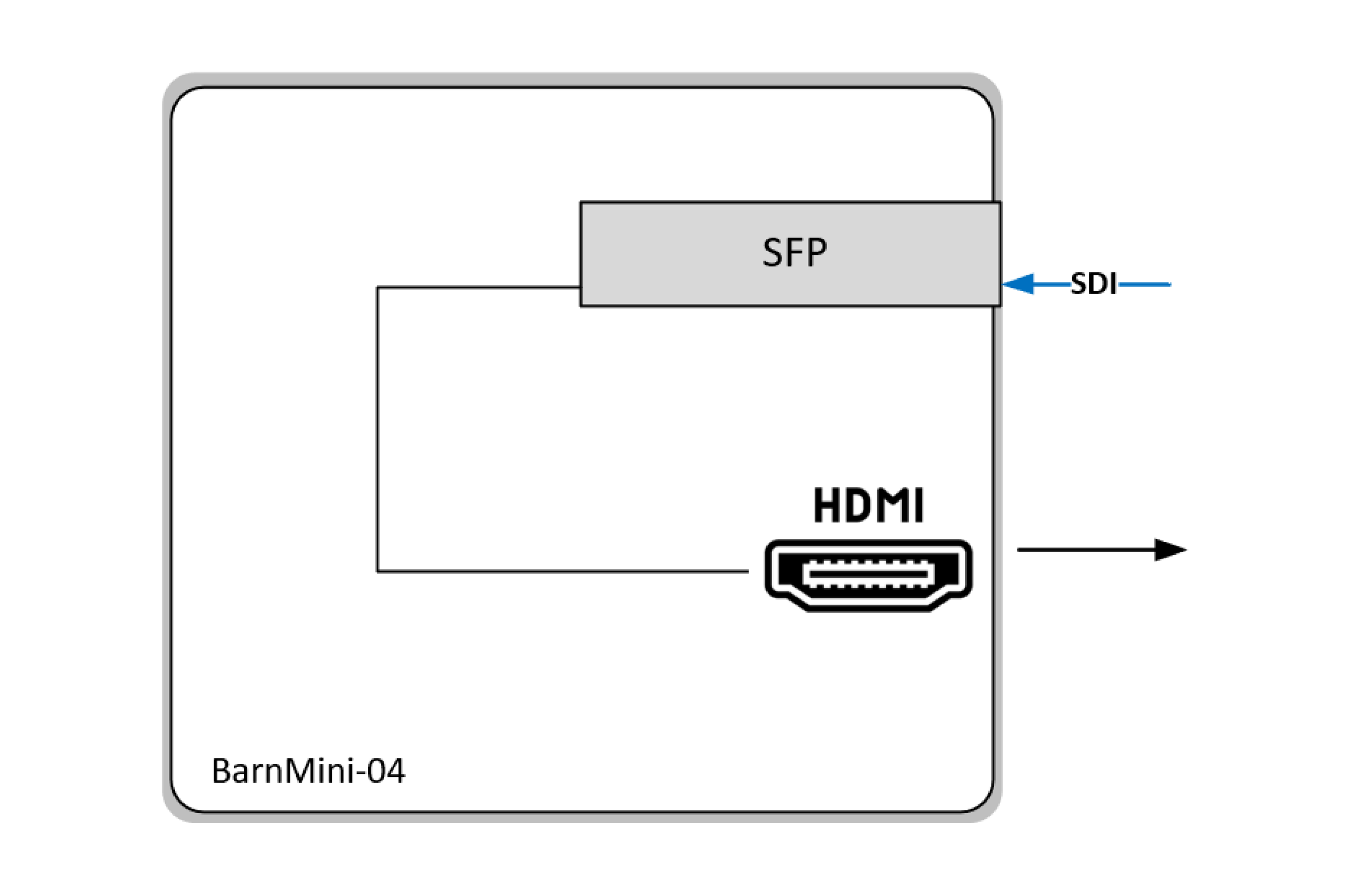

The BarnMini series are made of robust materials in an elegant design. BarnMini-04 converts SDI from the SFP port to HDMI. Optical fiber or coaxial copper cable can be used as a transport medium depending on SFP inserted.
All BarnMini modules can be used as a standalone box or in a more sophisticated system with BarnOne or BarnColor.
Technical Specifications
-
• 1x SFP port (small formfactor pluggable) for transceivers, MSA compliant, up to 3Gbps
• SMPTE 259M, 292M, 372M, 424M, 297M
• SFP modules are hot pluggable/swappable
• Single-mode, multi-mode or media-converter SFP modules -
• HDMI Standard Type A connector
• HDMI 1.4 output -
• 12-24V DC, power supply included
-
• 92mm x 98mm x 22mm
• 200g -
• BarnMini-04
Downloads
Accessories
BT-Mini-PSU
Spare PSU for BarnMini series (stand-alone)
The BarnMini Frame
BTF-Mini-16 is a housing with space for up to 16 x BarnMini modules of any kind
Find all of our accessories here!
