The BarnMini series
The BarnMinis are ideal for standalone solutions and solve everything from a simple task to more comprehensive solutions. BarnMinis can be used in conjunction with other Barnfind products to empower complete distributed systems in larger facilities.

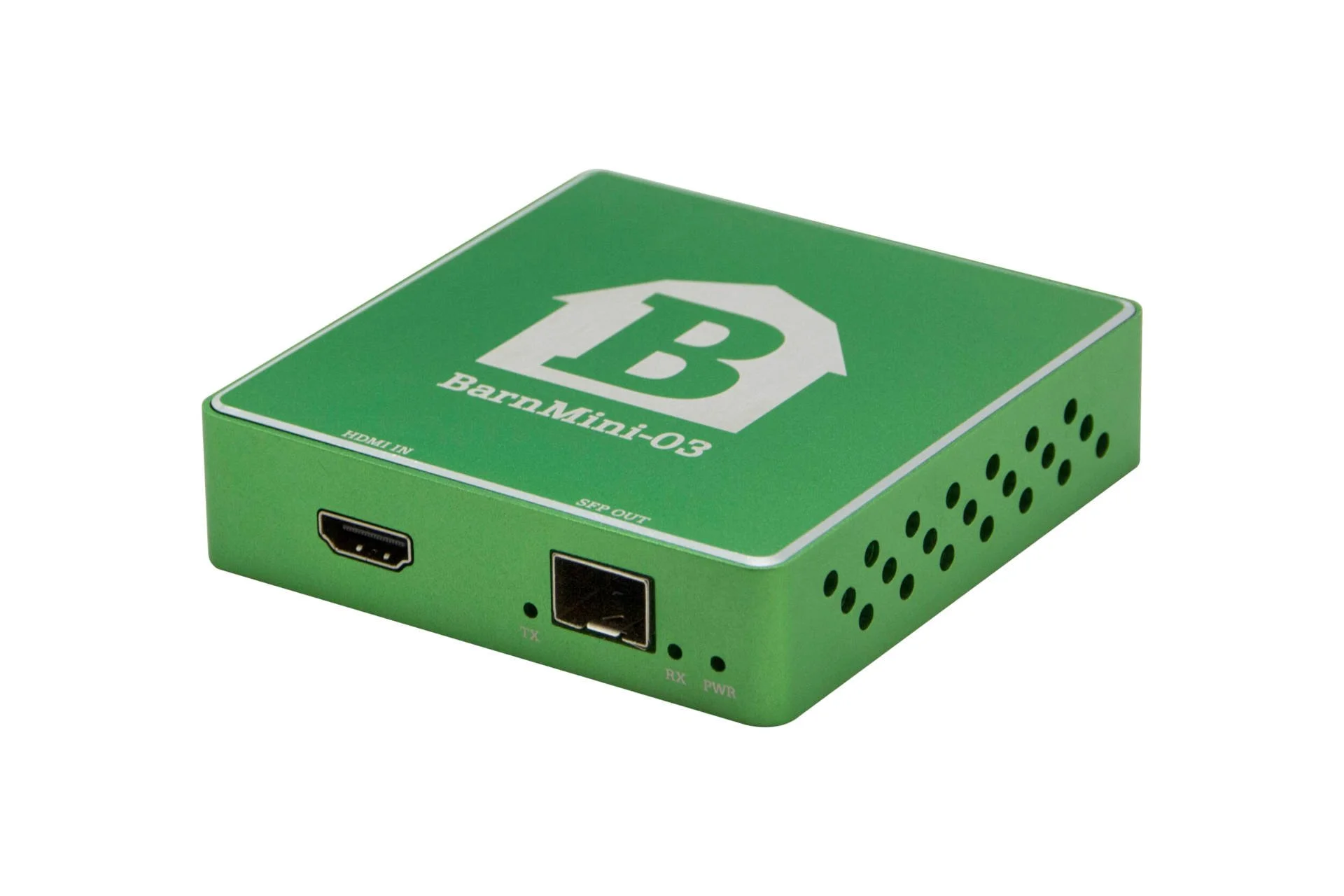

BarnMini - 03
The BarnMini series are made of robust materials in an elegant design. BarnMini-03 converts a HDMI signal to SDI via the SFP port. Optical fiber or coaxial copper cable can be used as transport medium depending on SFP inserted.
All BarnMini modules can be used as a standalone box or in a more sophisticated system with BarnOne or BarnColor.

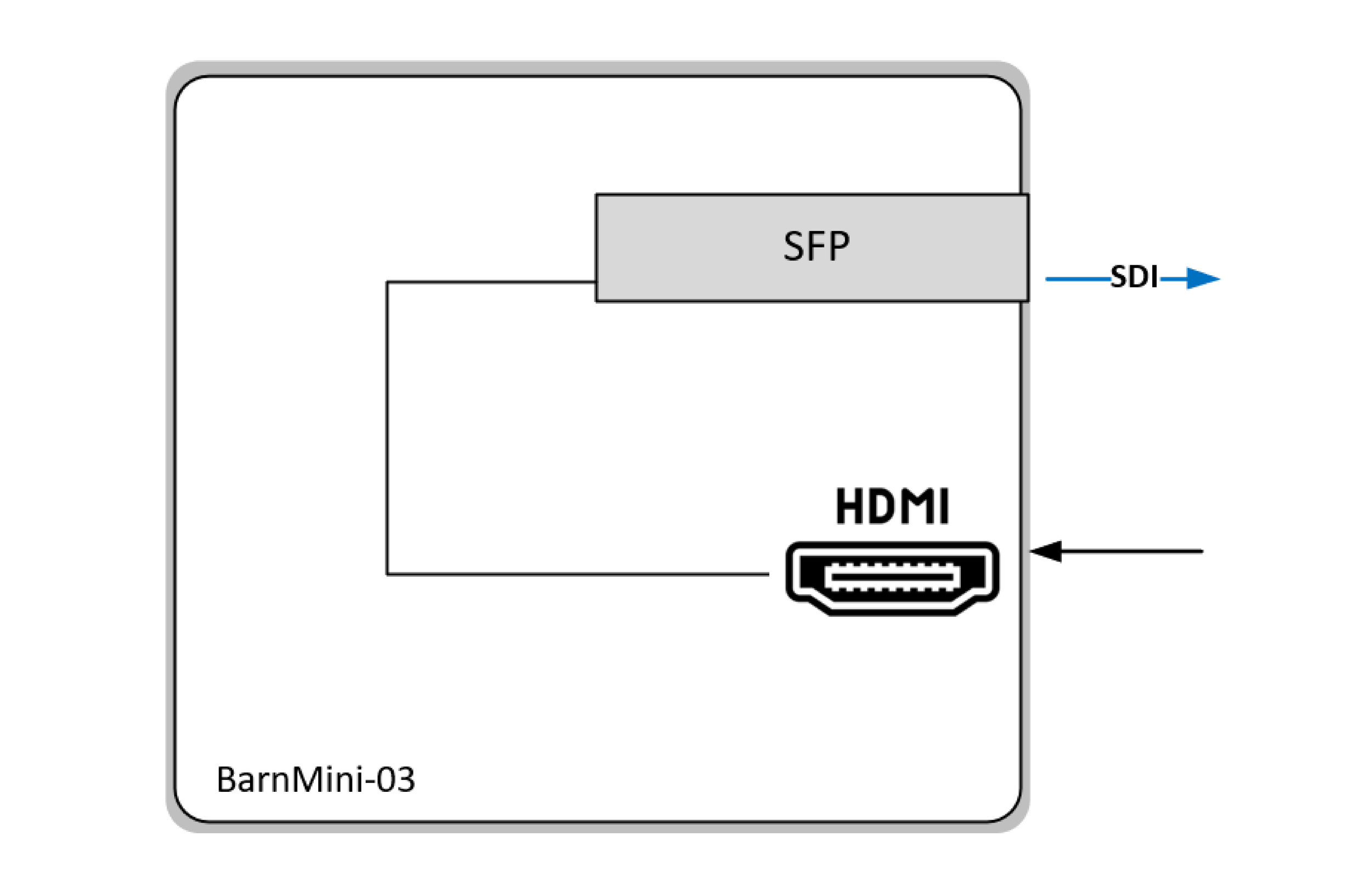

HDMI to SFP (SDI) converter
Technical Specifications
-
• 1x SFP port (small formfactor pluggable) for transceivers, MSA compliant, up to 3Gbps
• SMPTE 259M, 292M, 372M, 424M, 297M
• Multirate reclocking of outputs 270Mbps – 3Gbps
• SFP modules are hot pluggable/swappable
• Single-mode, multi-mode or media-converter SFP modules -
• HDMI Standard Type A connector
• HDMI 1.4 input -
• 12-24V DC, power supply included
-
• 92mm x 98mm x 22mm
• 200g -
• BarnMini-03
Downloads
Accessories
BT-Mini-PSU
Spare PSU for BarnMini series (stand-alone)
The BarnMini Frame
BTF-Mini-16 is a housing with space for up to 16 x BarnMini modules of any kind
